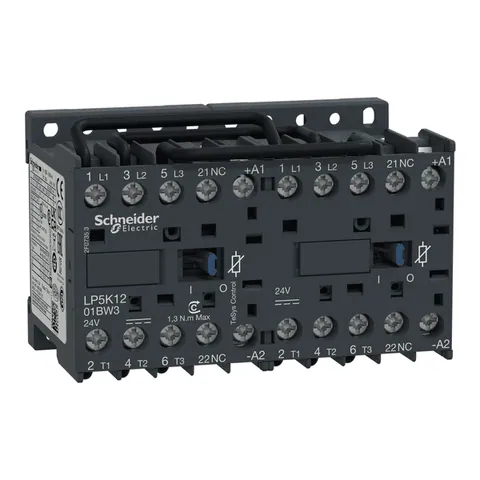

LP5K1201BW3

Environment

Mechanical Robustness

shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor opened, on X axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Y axis6 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on X axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Y axis10 Gn for 11 ms IEC 60068-2-27

Ambient Air Temperature For Operation

-25-50 °C

Height

58 mm

Net Weight

0.49 kg

Flame Retardance

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Ambient Air Temperature For Storage

-50-80 °C

Protective Treatment

TC IEC 60068 || TC DIN 50016

Ip Degree Of Protection

IP20 VDE 0106

Operating Altitude

6561.68 ft (2000 m) without derating

Width

90 mm

Depth

57 mm

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1503003EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity Profile

ENVEOLI1503003EN

Eu Rohs Directive

Compliant

Complementary

Minimum Switching Current

5 mA for signalling circuit

Control Circuit Voltage Limits

operational: 0.7...1.30 Uc (at <50 °C) || drop-out: 0.1...0.7 Uc (at <50 °C)

Non Overlap Distance

0.5 mm

Hold-In Power Consumption In W

1.8-1.8 W 20 °C

Insulation Resistance

> 10 MOhm for signalling circuit

Coil Technology

built-in bidirectional peak limiting diode suppressor

Minimum Switching Voltage

17 V for signalling circuit

Inrush Power In W

1.8-1.8 W 20 °C)

Auxiliary Contacts Type

instantaneous 1 NC

Heat Dissipation

1.8-1.8 W

Specifications

Product Certifications

CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Interlocking Type

mechanical

[Uc] Control Circuit Voltage

24 V DC

[Ue] Rated Operational Voltage

power circuit 690 V AC 50/60 Hz || signalling circuit <= 690 V AC 50/60 Hz

Average Impedance

3 mOhm - Ith 20 A 50 Hz for power circuit

Auxiliary Contact Composition

1 NC

[Ith] Conventional Free Air Thermal Current

20 A (at 50 °C) for power circuit || 10 A (at 50 °C) for signalling circuit

Standards

EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1

Mounting Support

rail || plate

Control Circuit Type

DC low consumption

Safety Reliability Level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Contactor Application

motor control || resistive load

Rated Breaking Capacity

110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conforming to IEC 60947

Product Or Component Type

reversing contactor

Irms Rated Making Capacity

110 A AC for signalling circuit conforming to IEC 60947 || 144 A AC for power circuit conforming to NF C 63-110 || 144 A AC for power circuit conforming to IEC 60947

Product Name

TeSys K

Associated Fuse Rating

25 A gG at <= 440 V for power circuit || 25 A aM for power circuit || 10 A gG for signalling circuit conforming to IEC 60947 || 10 A gG for signalling circuit conforming to VDE 0660

[Uimp] Rated Impulse Withstand Voltage

8 kV

Connections - Terminals

screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end

Range

TeSys

Pole Contact Composition

3 NO

Device Presentation

preassembled with reversing power busbar

Utilisation Category

AC-1 || AC-3 || AC-4 || AC-3e

[Ie] Rated Operational Current

20 A (at <50 °C) at <= 440 V AC AC-1 for power circuit || 16 A (at <70 °C) at 690 V AC AC-1 for power circuit || 12 A at <= 440 V AC AC-3 for power circuit || 12 A at <= 440 V AC AC-3e for power circuit

Maximum Operating Rate

3600 cyc/h

Electrical Durability

1.3 Mcycles 12 A AC-3 <= 440 V || 1.3 Mcycles 12 A AC-3e <= 440 V || 0.3 Mcycles 20 A AC-1 <= 690 V || 0.02 Mcycles 72 A AC-4 <= 440 V

Mechanical Durability

5 Mcycles

Poles Description

3P

Operating Time

10...20 ms coil de-energisation and NO opening || 30...40 ms coil energisation and NO closing

Tightening Torque

0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm || 0.8-1.3 N.m screw clamp terminals pozidriv No 2

Overvoltage Category

III

Motor Power Kw

4 kW 480 V AC 50/60 Hz || 4 kW 500...600 V AC 50/60 Hz || 4 kW 660...690 V AC 50/60 Hz || 3 kW 220...230 V AC 50/60 Hz || 5.5 kW 380...415 V AC 50/60 Hz || 5.5 kW 440 V AC 50/60 Hz

[Ui] Rated Insulation Voltage

power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-5-1 || signalling circuit 600 V UL 508 || power circuit 600 V CSA C22.2 No 14 || signalling circuit 600 V CSA C22.2 No 14

Device Application

control

Device Short Name

LP5K

[Icw] Rated Short-Time Withstand Current

115 A 50 °C - 1 s for power circuit || 105 A 50 °C - 5 s for power circuit || 100 A 50 °C - 10 s for power circuit || 75 A 50 °C - 30 s for power circuit || 55 A 50 °C - 1 min for power circuit || 50 A 50 °C - 3 min for power circuit || 80 A - 1 s for signalling circuit || 90 A - 500 ms for signalling circuit || 110 A - 100 ms for signalling circuit || 25 A 50 °C - >= 15 min for power circuit
