Schneider Electric LRD3357

Name: TeSys Deca Thermal Overload Relay, 37-50A, Class 10A
Brand: Schneider Electric
SKU: LRD3357

TeSys Deca Thermal Overload Relay, 37-50A, Class 10A

1 / 1

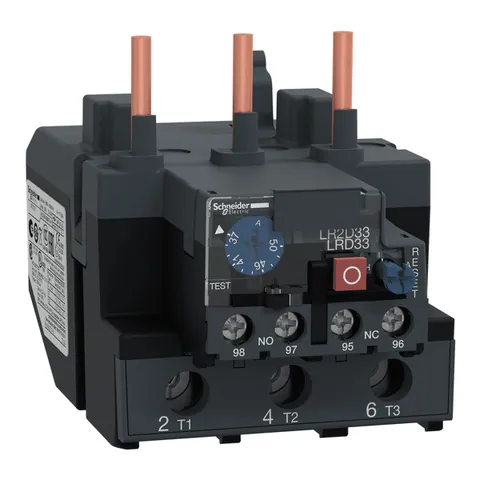

Manufacturer catalogue image

Product Description

Lifecycle Status:

Schneider Electric's TeSys LRD overload relays are designed for seamless integration with TeSys D contactors, forming a comprehensive motor starter solution. These differential thermal overload relays are equipped to detect overcurrents in the lines feeding the motor. Upon detection of an overcurrent, these relays, working in conjunction with the contactor, will disconnect power to the motor, thereby minimizing damage to the motor windings.

This overload relay boasts an adjustable trip current rating ranging from 37 to 50 amperes. This rating is calibrated according to Class 10A standards. Furthermore, it is multi-standard certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), and complies with Green Premium standards (RoHS/Reach).

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United Kingdom, member since 2021
Availability:: 1 pc.
In-Stock
Updated at: 31-10-2025
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Product Certifications: IEC || UL || CSA || CCC || EAC || ATEX INERIS || UKCA
Mechanical Robustness: vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Standards: EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495
Climatic Withstand: IACS E10
Ambient Air Temperature For Operation: -20-60 °C without derating IEC 60947-4-1
Dielectric Strength: 2.2 kV 50 Hz IEC 60947-1
