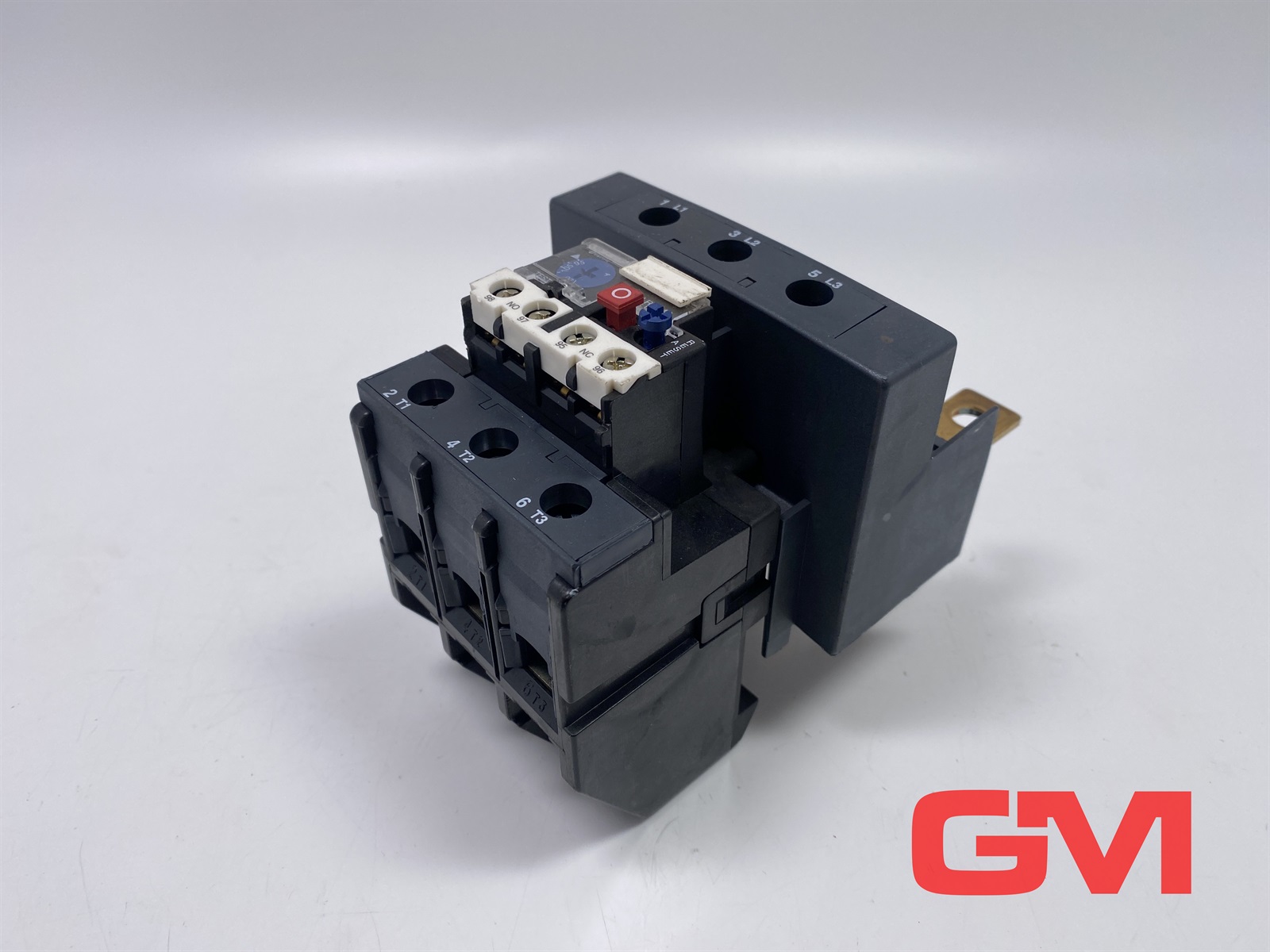

Schneider Electric LRD4367
TeSys Deca thermal overload relays , 95...120A , class 10A
1 / 1
Manufacturer catalogue image
Product Description
Lifecycle Status:
The Schneider Electric TeSys LRD thermal overload relay is designed for use with TeSys D contactors. It offers protection for motors up to 55kW at 400V, thanks to its thermal range of 95-120A and tripping class of 10A. The relay also includes phase unbalance protection. This compact and lightweight relay is available worldwide and is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). It features manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. The relay can be directly mounted on the bottom terminals of a Tesys contactor LC1D115 and D150 to form a compact starter. It is temperature compensated for accurate protection and can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Product Certifications
- IEC || UL || CSA || CCC || EAC || ATEX INERIS
- Mechanical Robustness
- vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495
- Climatic Withstand
- IACS E10
- Ambient Air Temperature For Operation
- -20-60 °C without derating IEC 60947-4-1
- Dielectric Strength
- 2.2 kV 50 Hz IEC 60947-1
