Schneider Electric LU2B32FU
Reversing power base, TeSys Ultra, 3P, 32A/690V, coil 110-240VAC/DC
1 / 1

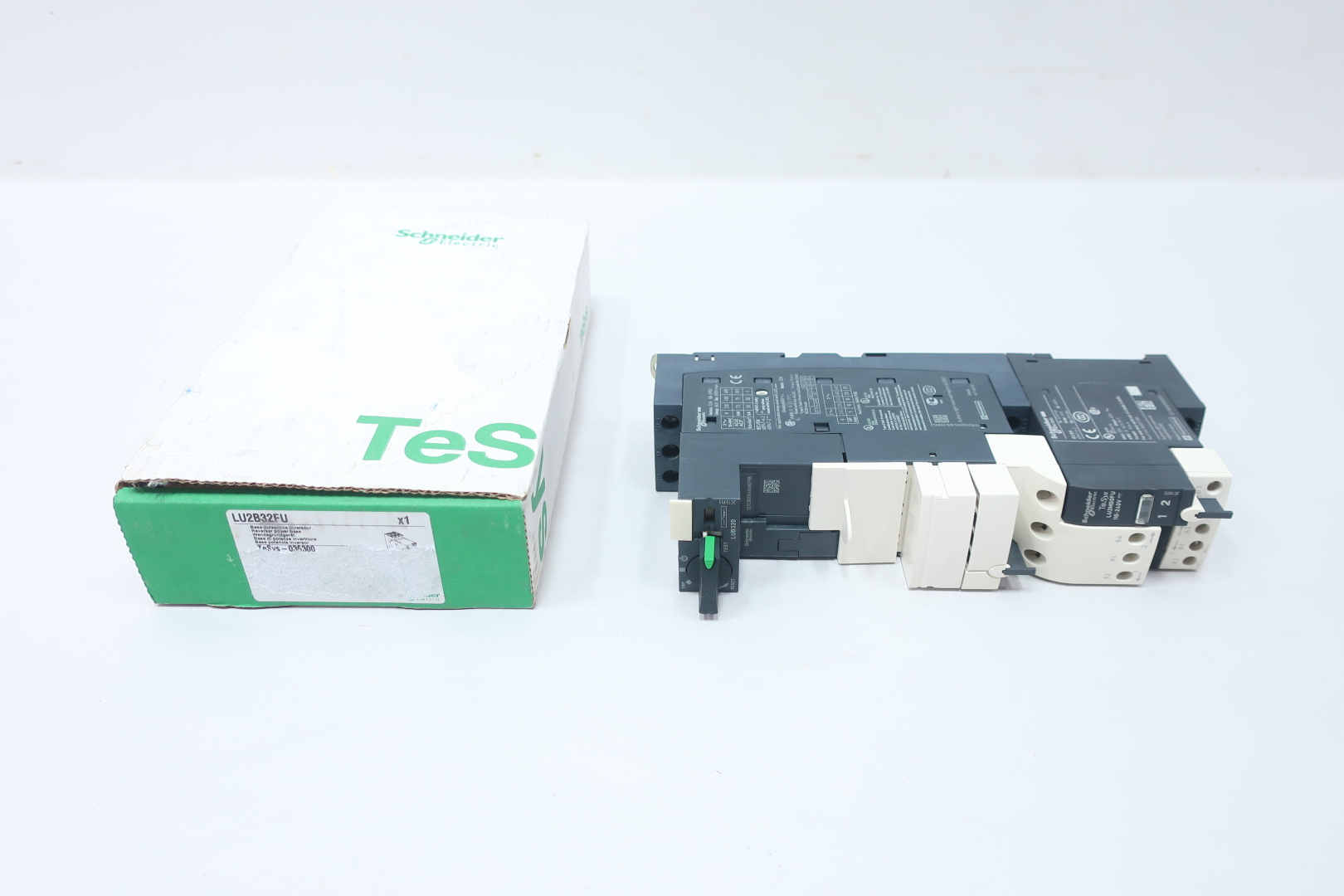

Manufacturer catalogue image
Product Description
Lifecycle Status:
TeSys U standard reversing power base, 3 poles (3NO), rated 32A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0FU to be supplied with 110-240V AC / 110-220V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — United Kingdom, member since 2021
- Availability:
- 3 pcs.In-StockUpdated at: 31-10-2025
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Ambient Air Temperature For Operation
- -25-60 °C with LUCM || -25-70 °C with LUCA, LUCB, LUCC, LUCD
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Non-Dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
- Immunity To Microbreaks
- 3 ms control circuit
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
