Schneider Electric LUCA05FU
TeSys Ultra Control Unit, Class 10, 1.25A to 5A
1 / 1

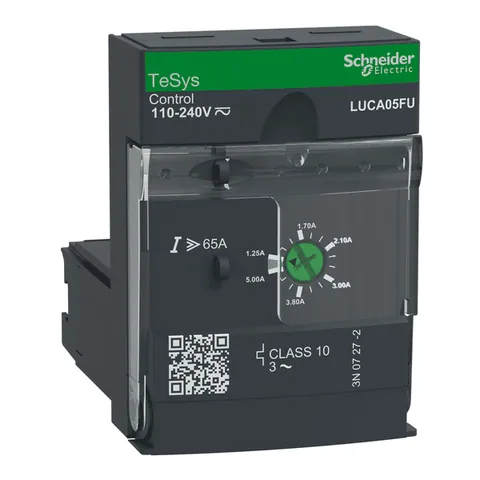

Manufacturer catalogue image
Product Description
Lifecycle Status:
The TeSys Ultra Control Unit is designed to be inserted into power bases such as LUB12, LUB32, and LUB38 to form a starter controller for 3-phase motor applications up to 1.5kW@400V. It offers full protection to motors with a rated current of 1.25-5A (adjustable), overload tripping class 10, short circuit at 13 times the maximum current, and overcurrent at 14.2 times the rated current. It also provides protection against phase loss and insulation faults (protection of equipment only). This control unit is compatible with a voltage range of 110-240V AC / 110-220V DC for controlling the starter through the control terminals A1/A2 located in the power base. It is certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), and is Green Premium compliant (RoHS/REACh).
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — United Kingdom, member since 2021
- Availability:
- 21 pcs.In-StockUpdated at: 31-10-2025
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Ambient Air Temperature For Operation
- -25-70 °C
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Non-Dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Immunity To Microbreaks
- 3 ms
