Schneider Electric LV430520

trip unit MicroLogic 2.2 M for ComPact NSX 160/250 circuit breakers, electronic, rating 150 A, 3 poles 3d

1 / 1

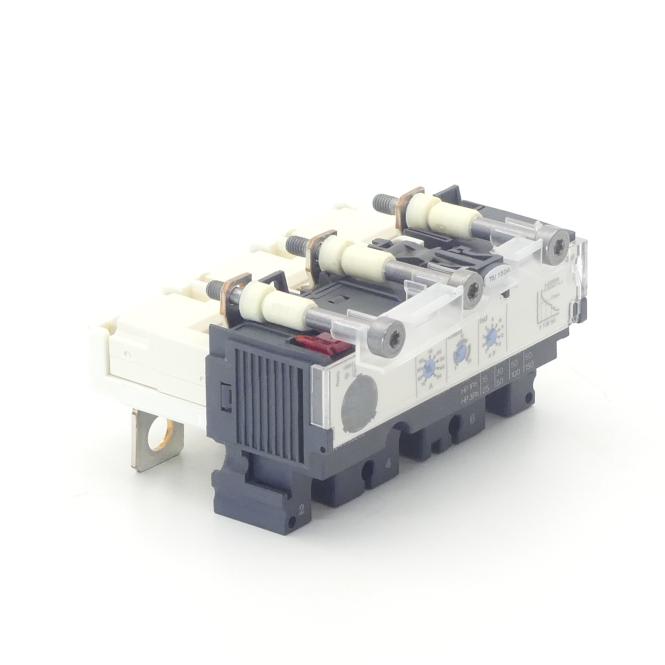

Schneider Electric LV430520 trip unit MicroLogic 2.2 M for ComPact NSX 160/250 circuit breakers, electronic, rating 150 A, 3 poles 3d
Manufacturer catalogue image

Product Description

Lifecycle Status:Successor:
This Micrologic 2.2 M is a 3 poles 3d electronic trip unit used on Compact NSX 160/250 circuit breakers. This 150A rating electronic trip unit is an optimum choice for motor protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. Micrologic 2.2 M indicates when the thermal image of the rotor and stator is greater than 95% of the permissible temperature rise with a red Alarm LED. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and Compact NSX basic frame.

Need more information?

Call us at:+48 17 778 34 19
Compare offers
Payment methods:

Offer details

Offer from:
Trusted supplier — France, member since 2021
Availability:
On requestLead time to be confirmed
Warranty:
Not specified
Condition:
Used
Used - A previously used item with possible signs of cosmetic wear. It is fully operational and functions as intended, though the original packaging may be missing.
The Seller is responsible for shipping the product and invoicing

Specifications

Brand
Schneider Electric
Network Frequency
50/60 Hz
Trip Unit Name
Micrologic 2.2 M
Range Of Product
ComPact NSX100...250
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
Trip Unit Protection Functions
LSoI
Network Type
AC

Available Offers

(2)
ConditionAvailabilitySupplierWarrantyAction
Schneider Electric LV430520
Condition
Used
Availability
On requestLead time to be confirmed
Supplier
FranceTrusted supplier — member since 2021
Warranty
Not specified
Schneider Electric LV430520
Condition
New Surplus
Availability
1 pc.
In-Stock
Updated at: 13-10-2026
Supplier
GermanyTrusted supplier — member since 2023
Warranty
12 months

Documents

Data Sheet

Datasheet for Schneider Electric LV430520, including specifications and features.

Download Data Sheet
TraceParts

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model

Product data updated: 13-10-2026
