Schneider Electric LV848022

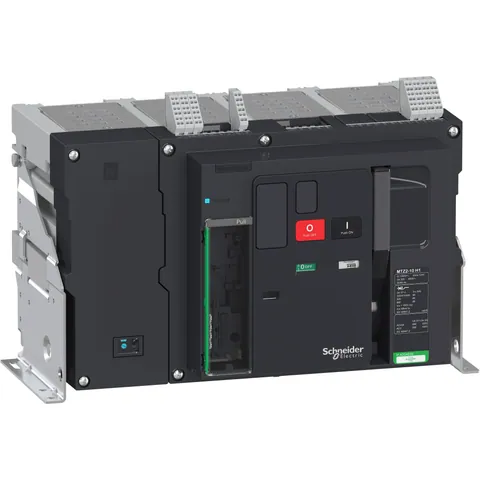

Circuit Breaker Frame, MTZ2 10H1, 1000A, 66kA/440VAC 50/60Hz, 4P, Fixed
Product Description
The MTZ2 10H1 is a basic frame designed for a 4-pole fixed circuit breaker. It operates at a rated current of 1000A and offers a maximum breaking capacity of 66kA at 440VAC for both 50Hz and 60Hz applications. This circuit breaker is engineered to safeguard electrical systems from overloads, short circuits, and ground faults.
Constructed to comply with IEC/EN 60947-1 and IEC/EN 60947-2 standards, it operates efficiently across a maximum voltage of 690VAC. The dimensions of the frame are 537mm (W) x 352mm (H) x 300mm (D), and it can be mounted either on a base plate or on rails.
For enhanced control and functionality, the frame is compatible with various MicroLogic control units, which are available separately. The product supports a pollution degree of 3 and operates effectively within an ambient temperature range of -25°C to 70°C, making it suitable for diverse industrial environments.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Romania, member since 2023, 1–4 employees
- Availability:
- On requestLead time: 21 days
- Warranty:
- Not specified
- Condition:
- New Surplus
Specifications
- Brand
- Schneider Electric
- Network Frequency
- 50/60 Hz
- Network Type
- AC
- Breaking Capacity Code
- H1
- Product Or Component Type
- circuit breaker
- Product Name
- MasterPact MTZ2
- Range
- Masterpact
Available Offers
(3)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Surplus | Availability On requestLead time: 21 days | Supplier RomaniaTrusted supplier — member since 2023, 1–4 employees | Warranty Not specified | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier GermanyTrusted supplier — member since 2024 | Warranty Not specified | |
| Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Germany
ItalyOffer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Schneider Electric LV848022, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 05-10-2026
