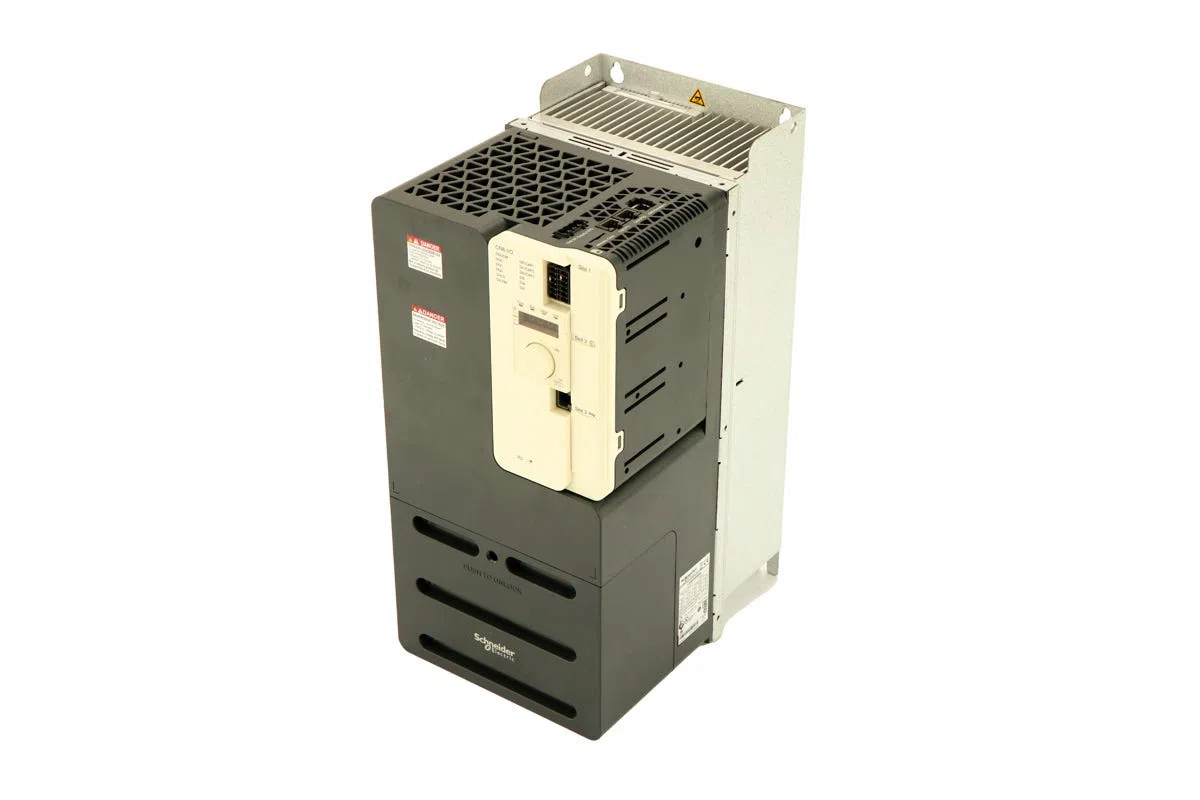

LXM32MD85N4

Environment

Product Certifications

CSA || TÜV || UL

Ambient Air Temperature For Operation

0-50 °C UL

Standards

EN/IEC 61800-3 || EN/IEC 61800-5-1

Shock Resistance

15 gn 11 ms EN/IEC 60028-2-27

Environmental Characteristic

classes 3C1 IEC 60721-3-3

Vibration Resistance

1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6

Electromagnetic Compatibility

conducted EMC, class A group 1 EN 55011 || conducted EMC, class A group 2 EN 55011 || conducted EMC, environment 2 category C3 EN/IEC 61800-3 || conducted EMC, category C2 EN/IEC 61800-3 || susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3 || 1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5 || electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4 || radiated EMC, class A group 2 EN 55011 || radiated EMC, category C3 EN/IEC 61800-3

Pollution Degree

2 EN/IEC 61800-5-1

Ambient Air Temperature For Storage

-25-70 °C

Type Of Cooling

integrated fan

Ip Degree Of Protection

IP20 EN/IEC 60529 || IP20 EN/IEC 61800-5-1

Operating Altitude

<= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with conditions

Relative Humidity

Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP110705EN

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI110605EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Product Compatibility

servo motor BMH 190 mm, 1 || servo motor BMH 190 mm, 2 || servo motor BMH 190 mm, 3 || servo motor BMH 205 mm, 3

Type Of Cable

single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR

Discrete Input Logic

positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 || positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 || positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1

Height

385 mm

Electrical Isolation

between power and control

Physical Interface

2-wire RS485 multidrop Modbus

Status Led

1 LED (Red) servo drive voltage

Discrete Input Voltage

24 V DC capture || 24 V DC logic || 24 V DC safety

Transmission Rate

9600, 19200, 38400 bps 40-40 m Modbus

Response Time

<= 5 ms compliment of STO_A, compliment of STO_B

Signalling Function

display of faults 7 segments

Marking

CE

Net Weight

9.6 kg

Contact Bounce Time

<= 1 ms compliment of STO_A, compliment of STO_B || 2 µs CAP || 0.25 µs...1.5 ms DI

Connector Type

RJ45 (labelled CN7) Modbus

Communication Interface

Modbus, Integrated || CANopen, with separated communication card || CANmotion, with separated communication card || Ethernet/IP, with separated communication card || DeviceNet, with separated communication card || I/O, with separated communication card || Profinet, with separated communication card

Braking Current

50 mA

Electrical Connection

terminal 5 mm², AWG 10 CN1) || terminal 5 mm², AWG 10 CN10) || terminal 8 mm², AWG 8 CN8)

Discrete Output Voltage

<= 30 V DC

Switching Frequency

4 kHz

Discrete Output Number

3

Discrete Output Logic

positive or negative DO)EN/IEC 61131-2

Discrete Input Type

capture CAP || logic DI || safety compliment of STO_A, compliment of STO_B

Control Signal Type

pulse train output (PTO) RS422 <500 kHz <100 m || pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m || pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m || pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m

Safety Function

STO (safe torque off), Integrated || SS1 (safe stop 1), with separated eSM safety card || SS2 (safe stop 2), with separated eSM safety card || SLS (safe limited speed), with separated eSM safety card

Number Of Addresses

1-247 Modbus

Output Voltage

<= power supply voltage

Operating Position

vertical +/- 10 degree

Maximum Leakage Current

30 mA

Width

180 mm

Overvoltage Category

III

Depth

240 mm

Tightening Torque

CN1 0.7-0.7 N.m || CN10 0.7-0.7 N.m || CN8 3.8-3.8 N.m

Protection Type

against reverse polarity inputs signal || against short-circuits outputs signal

Discrete Input Number

2 capture || 2 safety || 4 logic

Discrete Output Type

logic DO)24 V DC

Response Time On Output

250 µs DO)discrete

Safety Level

SIL 3 EN/IEC 61508 || PL = e ISO 13849-1

Sampling Duration

DI 0.25 ms discrete || 0.25 ms

Specifications

Network Frequency

47.5...63 Hz

[Us] Rated Supply Voltage

380...480 V - 15...10 %

Output Current 3S Peak

85 A 480 V 5 s

Range Of Product

Lexium 32

Format Of The Drive

book

Product Or Component Type

motion servo drive

Phase

three phase

Line Current

3.5 A 88 % 380 V, with external line choke 2 mH || 2.9 A 98 % 480 V, with external line choke 2 mH || 3.6 A 174 % 480 V, without line choke || 19.9 A 145 % 480 V, without line choke

Supply Voltage Limits

323-528 V

Emc Filter

integrated

Nominal Power

9 kW 400 V 8 kHz || 5 kW 230 V 4 kHz || 9 kW 480 V 8 kHz

Continuous Output Current

32 A 4 kHz

Continuous Power

1600 W 400 V || 9000 W 230 V || 9000 W 480 V

Device Short Name

LXM32M

Supply Frequency

50/60 Hz - 5...5 %
