Schneider Electric M9F11204

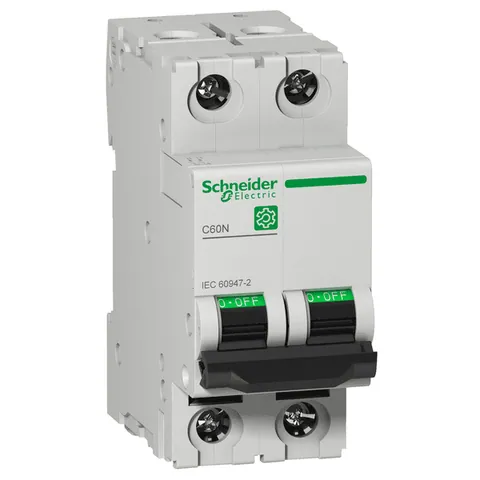

Miniature circuit breaker (MCB), Multi9 C60N, 2P, 4A, C curve, 10kA
Product Description
The Multi9 C60N is a 2-pole miniature circuit breaker (MCB) designed for low voltage applications. It features a rated current of 4A and adheres to the C tripping curve, providing effective overload and short-circuit protection. The unit has a short circuit breaking capacity of 10kA at 415VAC, complying with the EN/IEC 60947-2 standard. Furthermore, it meets both industrial and residential standards, specifically EN/IEC 60898-1 and EN/IEC 60947-2, ensuring its reliability in various environments.
Constructed for durability, the device supports electrical endurance ratings of up to 10,000 cycles and mechanical endurance of 20,000 cycles. With an operational voltage of 240VAC and the capability to operate at 415VAC, this MCB is suitable for a range of applications. Its rated insulation voltage is 500VAC, while the impulse withstand voltage is rated at 6kV.
Designed for ease of installation, the breaker can be clipped onto a DIN rail and occupies a width of 4 pitches at 9mm each. The operational temperature range is between -30°C to 70°C, with a storage temperature extending from -40°C to 80°C. The unit boasts an IP20 protection rating, ensuring its terminals are safe from dust and foreign objects. The light grey color (RAL7035) enhances its visibility and integration within electrical panels.
Need more information?
Offer details
- Offer from:
- Trusted supplier — Romania, member since 2023, 1–4 employees
- Availability:
- On requestLead time: 21 days
- Warranty:
- Not specified
- Condition:
- New Surplus
Specifications
- Brand
- Schneider Electric
- Network Frequency
- 50/60 Hz
- [Ics] Rated Service Breaking Capacity
- 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 125 V DC
- Contact Position Indicator
- yes
- Earth-Leakage Protection
- separate block
- Mounting Support
- DIN rail
- 9 Mm Pitches
- 4
