Schneider Electric M9F52125

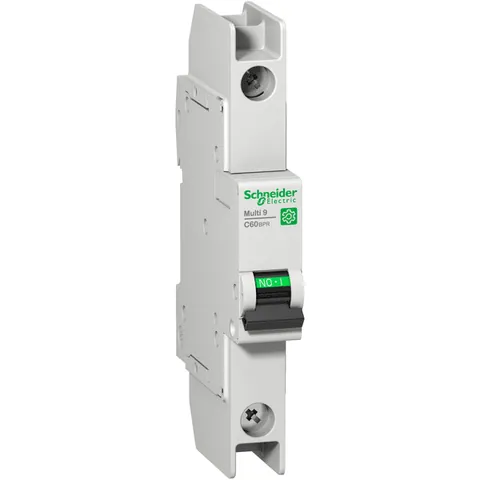

The Multi9 C60BPR is a low voltage miniature circuit breaker (MCB) designed for various applications, featuring a single protected pole and a rated current of 25A. It adheres to both industrial and residential standards, specifically EN/IEC 60947-2 and EN/IEC 60898-1, ensuring reliable performance in diverse environments.

With a breaking capacity of up to 14kA at 240V AC per UL 489 and 10kA at 240V AC per IEC standards, this circuit breaker offers significant protection against electrical faults such as short circuits, overloads, and earth leakage. The rated operational voltage reaches up to 415VAC, with an insulation voltage rated at 500VAC and an impulse withstand voltage of 6kV, aligning with EN/IEC 60947-2 standards.

Designed for OEMs and control panel builders, the device features an electrical endurance of 10,000 cycles and a mechanical endurance of 20,000 cycles, allowing for robust usage in demanding conditions. The operational temperature range extends from -30°C to 70°C, and it can be stored in temperatures between -40°C and 80°C, making it suitable for various environmental conditions.

The unit's physical dimensions are as follows: 18mm in width, 127mm in height, and 72mm in depth, with a color designation of light grey (RAL7035). It is equipped with IP20 protection for terminal areas as per IEC/EN 60529, ensuring safety and compliance in its intended applications. The device mounts easily on a DIN rail, occupying two pitches of 9mm.
