Schneider Electric
NSYCCOTHD

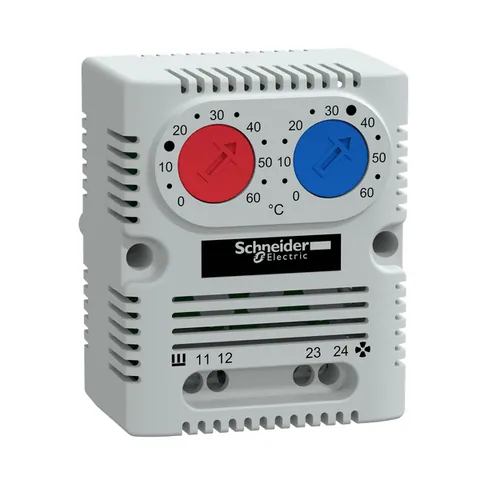

ClimaSys CC - double thermostat 250V - range of temperature 0…60°C - 1NO/NC - °C
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€37.31
1
Payment methods:
A total of 451 Parts In-Stock from 24 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:1 - 2 business days
Best price:
€14.40
Additional Information
- Part Number
- NSYCCOTHD
- UNSPSC
- 39121321
- Tariff Code
- 9032100060
- Country of Origin
- FR
Complementary
- Maximum Switching Capacity
- 2 A 120...250 V AC inductive 0.6 || 10 A 250 V AC resistive || 15 A 120 V AC resistive || 30 W DC
- Product Certifications
- UL
- Hysteresis
- 7 K +/- 0.4K
- Ambient Air Temperature For Operation
- -20-80 °C
- Number Of Outputs
- 1 heating function || 1 ventilation function
- Service Life In Cycles
- 100000 cycles
- Material
- PC
- Net Weight
- 40 g
- Depth
- external 44 mm
- Mounting Location
- Spacial upright || on mounting plate || 35 mm DIN rail || cross rails
- Input Voltage
- 250 V
- Electrical Connection
- 4 terminals 2.5 mm²
- Flame Retardance
- self-extinguishing conforming to UL94 (material V0)
- Contacts Type And Composition
- 1 NO/NC
- Mounting Mode
- clipped
- Color
- Light gray
- Width
- external 56 mm
- Height
- external 68 mm
- Sensor Type
- bimetal
- Ip Degree Of Protection
- IP20
- Contact Resistance
- 10 mOhm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2103012EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
Specifications
- Information Displayed
- temperature in °C
- Product Or Component Type
- double thermostat
- Product Name
- ClimaSys CC
- Range
- ClimaSys
- Temperature Setting Range
- 0-60 °C
