Schneider Electric
NSYMR86

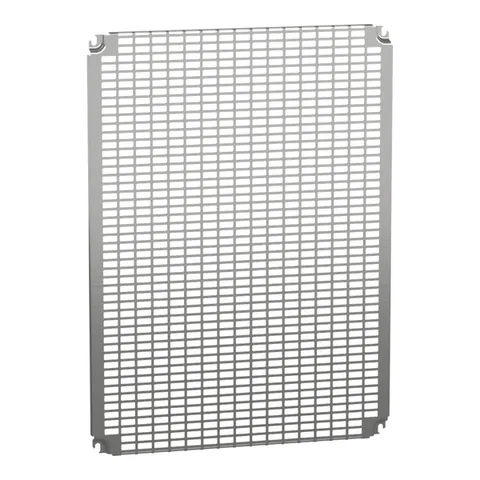

Monobloc perforated plates H800xW600mm with universal perforations 11x26mm
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
£43.20
1
Payment methods:
A total of 86 Parts In-Stock from 17 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:1 - 2 business days
Best price:
€27.90
Additional Information
- Part Number
- NSYMR86
- UNSPSC
- 39121321
- Tariff Code
- 7326908688
- Country of Origin
- FR
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Variant Particularity
- with enclosures H800 x W1200 || installation in rear of enclosure
- Thickness
- 2 mm
- Net Weight
- 3.16 kg
- Depth
- 15 mm
- Fixing Mode
- screwed on backstuds M8 || by fixing element
- Cut-Out Dimensions
- 11 x 26 mm
- Number Of Slots
- 867
- Width
- 551 mm
- Height
- 750 mm
Overview
- Lead Time
- Usually Ships within 4 Weeks
Specifications
- Enclosure Nominal Dimensions
- H: 800 mm W: 600 mm || - H: 800 mm W: 1200 mm
- Range Compatibility
- Spacial Spacial S3D || Spacial Spacial CRN || Spacial Spacial S3X || Thalassa Thalassa PLM
- Accessory / Separate Part Category
- mounting accessory
- Surface Finish
- zinc coated
- Product Or Component Type
- mounting plate
- Range
- Spacial
- Mounting Location
- step slide || direct fixing on backstuds
- Material
- steel
- Quantity Per Set
- set of 1
- Device Application
- multi-purpose
- Mounting Plate Description
- Telequick perforated
Documents
Data Sheet
DownloadCAD Models
