Schneider Electric RXG22BD

Name: interface plug-in relay, 5A, 2CO, with LED, lockable test button, 24V DC
Brand: Schneider Electric
SKU: RXG22BD

interface plug-in relay, 5A, 2CO, with LED, lockable test button, 24V DC

1 / 5

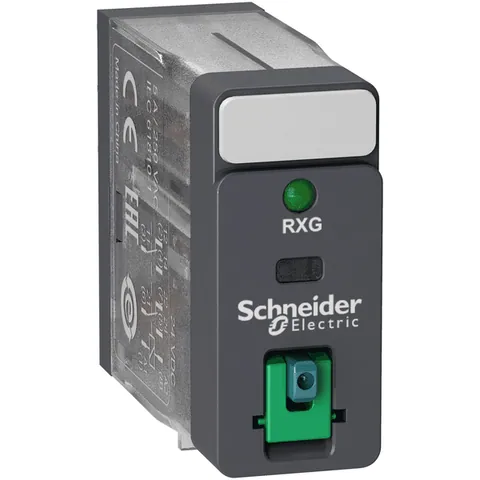

Manufacturer catalogue image

Product Description

Lifecycle Status:

The Harmony RXG interface relay is designed for use in various applications, featuring a coil control voltage of 24V DC and equipped with 2 changeover contacts rated at 5A. The relay incorporates a lockable test button and an LED indicator for status display, ensuring clear visibility of operation both day and night.

This relay facilitates installation with its faston pin terminal, allowing for quick and secure mounting, thus reducing enclosure size and enhancing machine reliability. It is well-suited for integration with industrial programmable logic controllers (PLCs) and is capable of operating in a broad temperature range of -40 to 70 °C. The design supports a maximum switching capacity of 1250 VA and is built to endure up to 10 million mechanical cycles.

With a dielectric strength of 1000 V AC between contacts and a robust insulation resistance of 1000 MOhm at 500 V DC, this relay ensures high operational safety and reliability. It is compliant with multiple standards including CSA C22.2 No 14, UL 508, and IEC 61810-1, making it suitable for various industrial applications.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Utilisation Coefficient: 20 %
Maximum Switching Capacity: 1250 VA
Safety Reliability Data: B10d = 100000
[Uc] Control Circuit Voltage: 24 V DC
Insulation Resistance: 1000 MOhm at 500 V DC
Operating Rate: <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
