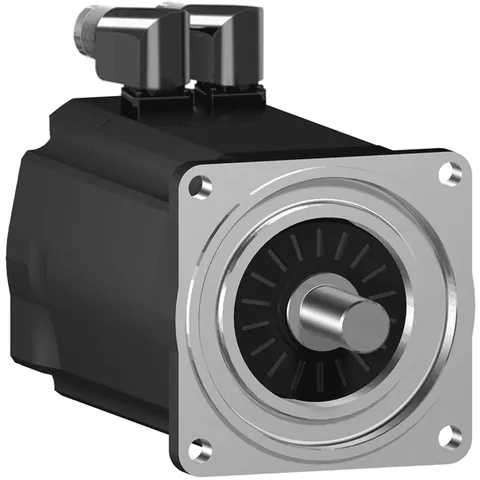

Schneider Electric SH31001P01F2000
servo motor SH3 100 2,94Nm,nokey,single,brake,90°conn.IP54/IP65,6k RPM
1 / 1
Manufacturer catalogue image
Product Description
Lifecycle Status:
Product Overview:
The Schneider Electric Lexium 52 Servo Motor, Model SH31001P01F2000, is a high-performance servo motor designed for PacDrive 3 motion control systems. With a maximum mechanical speed of 6000RPM and a smooth shaft end with holding brake, this servo motor provides reliable and precise motion control.
Key Features:
- Equipped with an absolute single-turn SinCos Hiperface® encoder for 128 periods speed feedback resolution
- Rated supply voltage of 115V to 480V, continuous stall current of 3.5A, and continuous power of 1190W
- Rotatable right angled connectors for electrical connection
- IP54/IP65 rated for durability and protection against dust and water
- Shaft dimensions: 19mm (diameter) x 40mm (length)
- Length of the product is 199.5mm, centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole
- Weighs 4.8kg and supports 100mm international standard flange mount with natural convection cooling system
Compatibility:
This servo motor is compatible with PacDrive 3 for motion centric machines and Lexium Stand alone servo drives from 0.4kW to 7kW for PacDrive based automation solutions.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Germany, member since 2024- Availability:
- 1 pc.In-StockUpdated at: 11-09-2026
- Warranty:
- 24 months
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Continuous Power
- 1190 W
- Maximum Mechanical Speed
- 6000 rpm
- Holding Torque
- 9 N.m
- Maximum Radial Force Fr
- 900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
- Encoder Type
- absolute single turn SinCos Hiperface
- Mounting Support
- international standard flange
