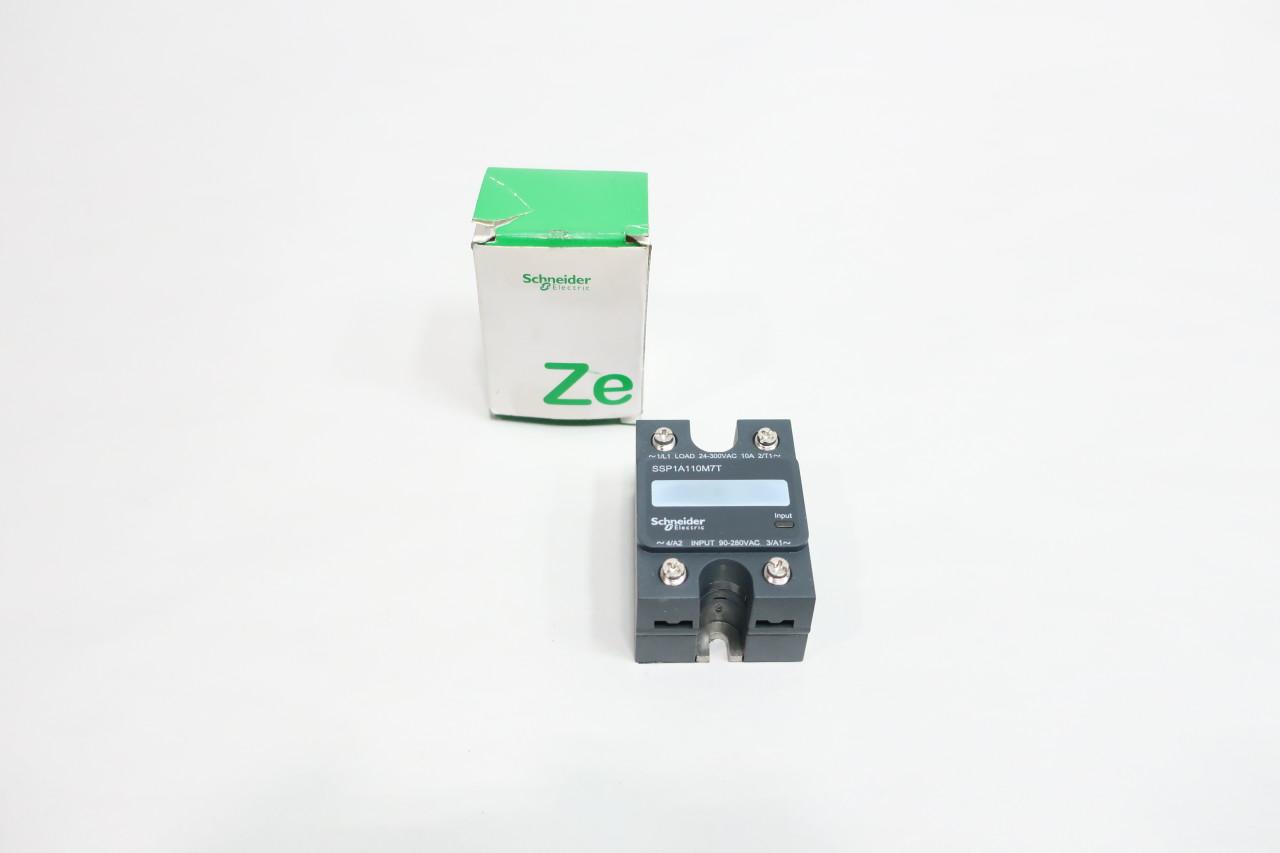

SSP1A110M7T

Specifications

Connections - Terminals

screw connectors

Range Of Product

Harmony Solid State Relays

Mounting Support

panel

Output Switching Mode

zero voltage switching

Product Or Component Type

solid state relay up to 10 A

Phase

1 phase

Solid State Output Type

zero voltage switching || SCR output

Provided Equipment

thermal pad

Line Rated Current

10 A

[Uc] Control Circuit Voltage

90...280 V

Device Short Name

SSP1

Environment

Product Certifications

EAC || CSA || UL || CE

Ambient Air Temperature For Operation

-40-80 °C

Standards

UL 508 || IEC 62314 || IEC 60950-1 || CSA C22.2 No 14-13

Pollution Degree

2

Marking

EAC || UL || CE || CSA

Ambient Air Temperature For Storage

-40-125 °C

Overvoltage Category

III

Complementary

Safety Reliability Data

MTTFd = 1875.9 years || B10d = 1731395

Cos Phi

0.5-0.5 (with maximum load)

[Uc] Control Circuit Voltage

90...280 V AC

Maximum Horse Power Rating

0.5 hp 120 V AC || 1 hp 240 V AC

Tightening Torque

1.5...1.7 N.m for input || 2...2.2 N.m for output

Insulation Resistance

1000 MOhm at 500 V DC

Thermal Resitance

1.03 °C/W junction to case

Maximum I²T For Fusing

60 A².s for 8.33 ms at 60 Hz || 66 A².s for 10 ms at 50 Hz

Maximum Voltage Drop

<1.15 V on-state

Connections - Terminals

screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input || screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output || screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input || screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output

Dielectric Strength

4 kV AC for input/output || 4 kV AC for input or output to case

Response Time

30 ms (turn-off) || 25 ms (turn-on)

Surge Current

120 A 16.6 ms

Load Current

0.15-10 A

Local Signalling

LED, green input

Net Weight

89.2 g

[Uimp] Rated Impulse Withstand Voltage

6 kV output to case || 6 kV input to output

Minimum Switching Voltage

90 V AC turn-on

Maximum Leakage Current

1 mA off-state

Thermal Impedance

0.48 °C-in²/W at 25 psi

Ip Degree Of Protection

IP20

Device Presentation

complete product

Absolute Maximum Voltage

600 V

Dv/Dt

500 V/µs off-state at maximum voltage

Maximum Switching Voltage

10 V AC turn-off

Capacitance Unbalance

8 pF for input/output

Input Current Limits

5-10 mA

Protection Device Type

type 1 - 13 A miniature circuit breaker (MCB) B || type 2 - 10 A miniature circuit breaker (MCB) B

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1505006EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation

X

Circularity Profile

ENVEOLI1505006EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)
