Schneider Electric

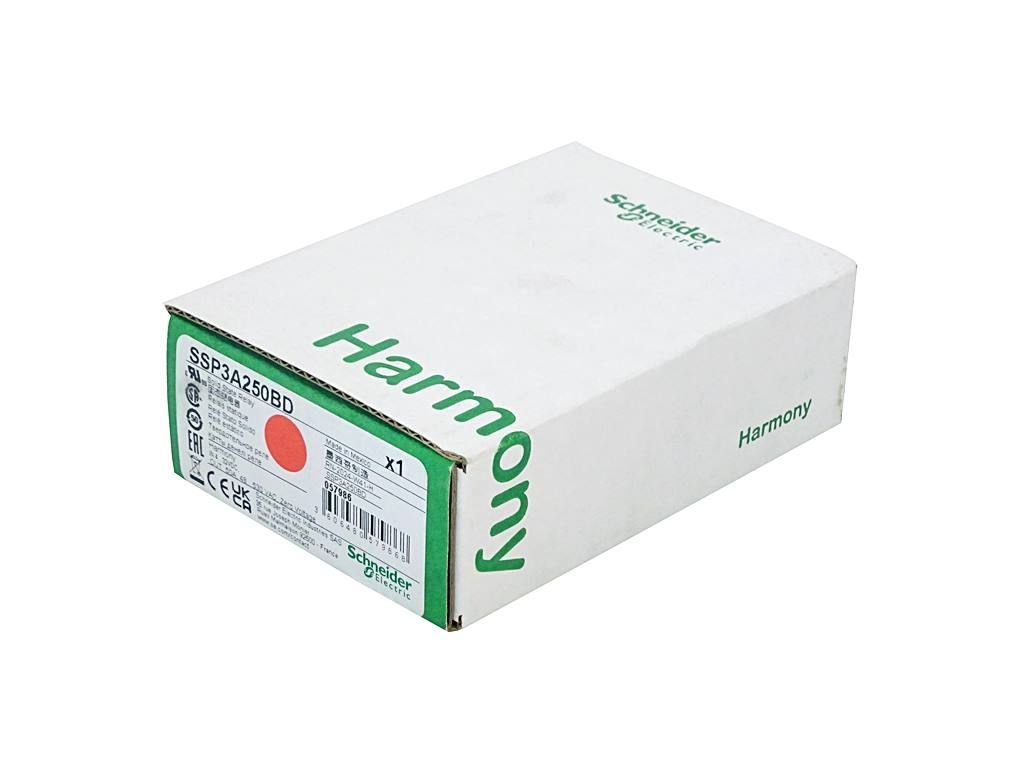

SSP3A250BD
1 / 5
Description
Active Mature
This panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 50 A, is controlled with a 4 to 32 V DC circuit, has a rated load voltage of 48 to 530 V AC output. It also has a test button for easy debugging, testing and commissioning It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events- Country of Origin
- MX
- Part Number
- SSP3A250BD
- Tariff Code
- 85364900
- EAN
- 3606480579868
- UNSPSC
- 39122333
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 2 pcs.In-StockUpdated at: 21-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Complementary
- Cos Phi
- 0.5-0.5 (with maximum load)
- [Uc] Control Circuit Voltage
- 4...32 V DC
- Height
- 79.7 mm
- Maximum Horse Power Rating
- 1.5 hp 40 °C 120 V AC || 3 hp 40 °C 240 V AC || 7.5 hp 40 °C 480 V AC || 8.8 hp 40 °C 530 V AC
- Tightening Torque
- 0.9...1.1 N.m for input || 1.7...2.2 N.m for output
- Insulation Resistance
- >= 1000 MOhm at 500 V DC
- Thermal Resitance
- 0.12 °C/W
- Maximum I²T For Fusing
- 2520 A².s for 10 ms at 50 Hz || 2320 A².s for 8.3 ms at 60 Hz
- Maximum Voltage Drop
- <1.35 V on-state
- Connections - Terminals
- screw terminals 1 x 0.2...1 x 2.5 mm², AWG 24...AWG 14) input || screw terminals 1 x 1.5...1 x 10 mm², AWG 16...AWG 8) output
- Dielectric Strength
- 4 kV AC for input/output || 4 kV AC for input or output to case
- Response Time
- 8.33 ms (turn-on) || 8.33 ms (turn-off)
- Surge Current
- 715 A 20 ms || 750 A 16.6 ms || 150 A 1 s
- Load Current
- 0.1-50 A
- Local Signalling
- LED, green input
- Net Weight
- 0.24 kg
- Minimum Switching Voltage
- 4 V DC turn-on
- Maximum Leakage Current
- 3 mA off-state
- Ip Degree Of Protection
- IP20
- Control Type
- without test button
- Device Presentation
- complete product
- Absolute Maximum Voltage
- 1200 V
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Maximum Switching Voltage
- 1 V DC turn-off
- Capacitance Unbalance
- 8 pF for input/output
- Width
- 101.3 mm
- Input Current Limits
- 24-35 mA
- Depth
- 35.4 mm
- Motor Power Kw
- 1.11 kW 40-40 °C 120 V AC || 2.22 kW 40-40 °C 240 V AC || 5.55 kW 40-40 °C 480 V AC || 6.47 kW 40-40 °C 530 V AC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1505006EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1505006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Connections - Terminals
- screw connectors
- Range Of Product
- Harmony Solid State Relays
- Mounting Support
- panel
- Output Switching Mode
- zero voltage switching
- Product Or Component Type
- solid state relay up to 50 A
- Phase
- 3 phase
- Solid State Output Type
- zero voltage switching
- Line Rated Current
- 50 A
- [Uc] Control Circuit Voltage
- 4...32 V
- Device Short Name
- SSP
Environment
- Product Certifications
- UL || CSA
- Ambient Air Temperature For Operation
- -40-80 °C
- Standards
- IEC 60950-1 || IEC 61000 || IEC 62314
- Pollution Degree
- 2
- Marking
- CE
- Flame Retardance
- V0 conforming to UL 94
- Ambient Air Temperature For Storage
- -40-125 °C
- Overvoltage Category
- III
