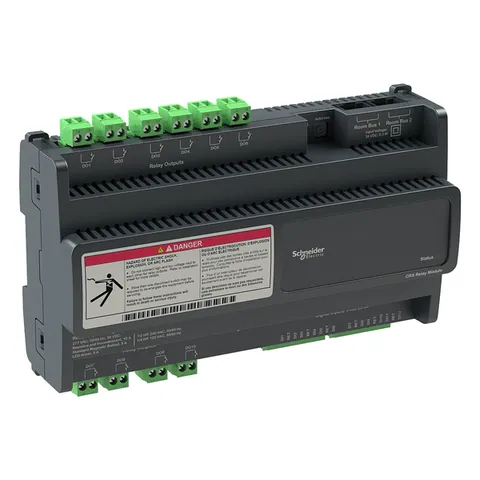

Schneider Electric SXWHHREL10001

The 10-Channel Relay Expansion Module from Schneider Electric's SpaceLogic RP series is an integral part of the EcoStruxure Connected Room Solutions. This module is designed to provide superior control for lighting and blinds in both hotel and commercial building applications. With its high inrush current capability, it is well-suited for a wide range of LED lights. The module supports blind motors operating with both high and low voltage, offering versatile control options.

The relay module features 12 digital inputs, providing greater flexibility for various applications, including in-wall switches and sensors. This flexibility ensures that the module can be adapted to a wide range of control scenarios. Additionally, the module does not require an extra power supply, as it operates through the RPC’s room bus port, simplifying installation and reducing costs.

Installation options include DIN rail or flat surface mounting, making it adaptable to different installation environments. The module is certified with UL 2043 for plenum applications, ensuring compliance with safety standards. The mechanical dimensions are 110 mm in height, 198 mm in width, and 64 mm in depth, making it compact and easy to integrate into existing systems.

Overall, the 10-Channel Relay Expansion Module is a reliable and efficient solution for enhancing lighting and blind control in various applications, providing both functionality and compliance with industry standards.
