Schneider Electric TM241CE24R

Name: Modicon M241 Logic Controller with 24 IO, Relay Outputs, and Ethernet Connectivity
Brand: Schneider Electric
SKU: TM241CE24R

Modicon M241 Logic Controller with 24 IO, Relay Outputs, and Ethernet Connectivity

1 / 2

Manufacturer catalogue image

Product Description

Lifecycle Status:

The Modicon M241 Logic Controller is part of the Modicon range, offering robust performance for complex applications. This controller provides 14 discrete, 8 fast inputs, 6 relay, 4 transistor, 4 fast outputs with transistor, and ethernet relay output. It has a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC or 5V to 250V AC for relay, 24V DC for transistor and an output current of 2A for relay, 0.1A for fast output, 0.5A for transistor. The Modicon M241 controller features a user-friendly interface with an organised screen design, making it easy to build applications intuitively. It includes integrated connections such as USB port with mini B USB 2.0 connector, non isolated serial link 1 with RJ45 connector and RS232/RS485 interface and non isolated serial link 2 with removable screw terminal block connector and RS485 interface. It has a capacity of 8MB for program, 64MB for system memory RAM, 128MB built-in flash memory for backup of user programs and a SD card memory capacity of 16GB. The Modicon M241 Logic Controller is IP20 rated and measures 150mm (Width) x 95mm (Depth) x 90mm (Height), weighing 0.53kg. It is designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. It supports DIN rail...

Need more information?

Call us at:+48 17 778 34 19

Compare offers

Payment methods:

Offer details

Offer from:: Trusted supplier — United States, member since 2023
Availability:: 3 pcs.
In-Stock
Updated at: 07-10-2026
Warranty:: 12 months

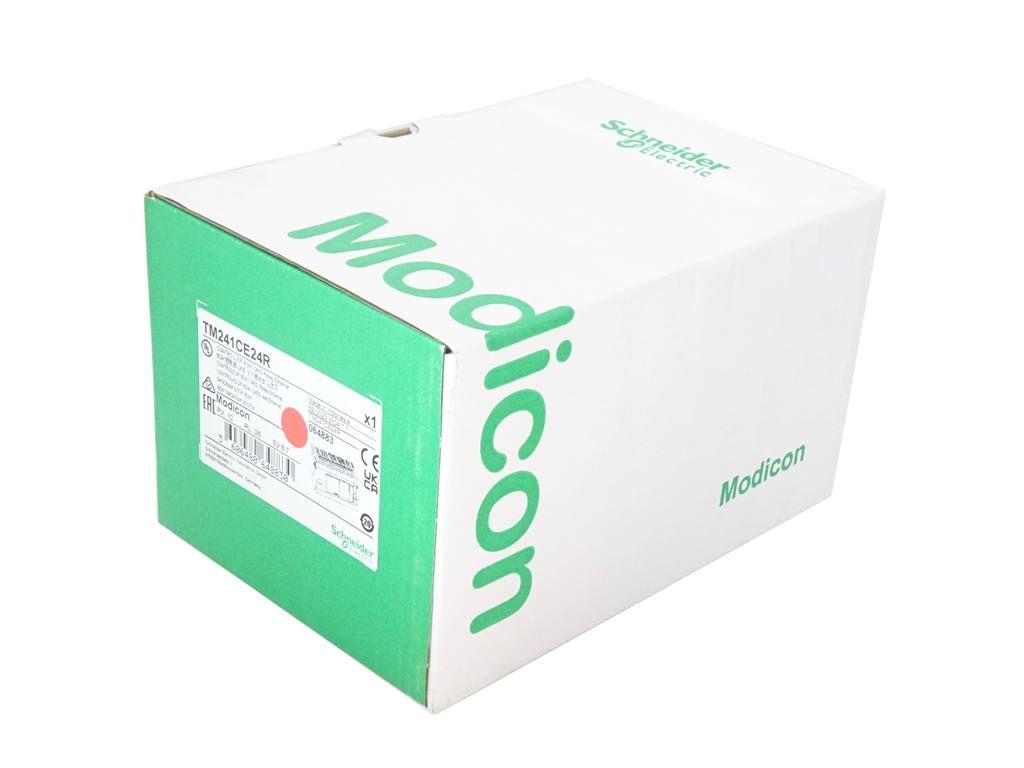

Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Network Frequency: 50/60 Hz
Discrete Input Logic: sink or source
Data Backed Up: 128 MB built-in flash memory backup of user programs
Electrical Connection: removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
Input Impedance: 4.7 kOhm input
Maximum Cable Distance Between Devices: unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output

Available Offers

(7)

Condition	Availability	Supplier	Warranty
Condition New Factory Sealed	Availability 3 pcs. In-Stock Updated at: 07-10-2026	Supplier United StatesTrusted supplier — member since 2023	Warranty 12 months
Condition New Surplus	Availability On requestLead time: 21 days	Supplier RomaniaTrusted supplier — member since 2023, 1–4 employees	Warranty Not specified
Condition New Factory Sealed	Availability On requestLead time: 21 days	Supplier NetherlandsTrusted supplier — member since 2021, 100–499 employees	Warranty 24 months
Condition New Factory Sealed	Availability 6 pcs. In-Stock Updated at: 08-10-2026	Supplier PolandTrusted supplier — member since 2023, 50–99 employees	Warranty 24 months
Condition New Factory Sealed	Availability 1 pc. In-Stock Updated at: 08-10-2026	Supplier GermanyTrusted supplier — member since 2024	Warranty 12 months
Condition New Factory Sealed	Availability On requestLead time to be confirmed	Supplier GermanyTrusted supplier — member since 2024	Warranty Not specified

Offer with manufacturer lead time

Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.

Documents

Data Sheet

Datasheet for Schneider Electric TM241CE24R, including specifications and features.

Download Data Sheet

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model
