Schneider Electric TM3DM24RG
Modicon TM3 Discrete Input/Output Module
1 / 1

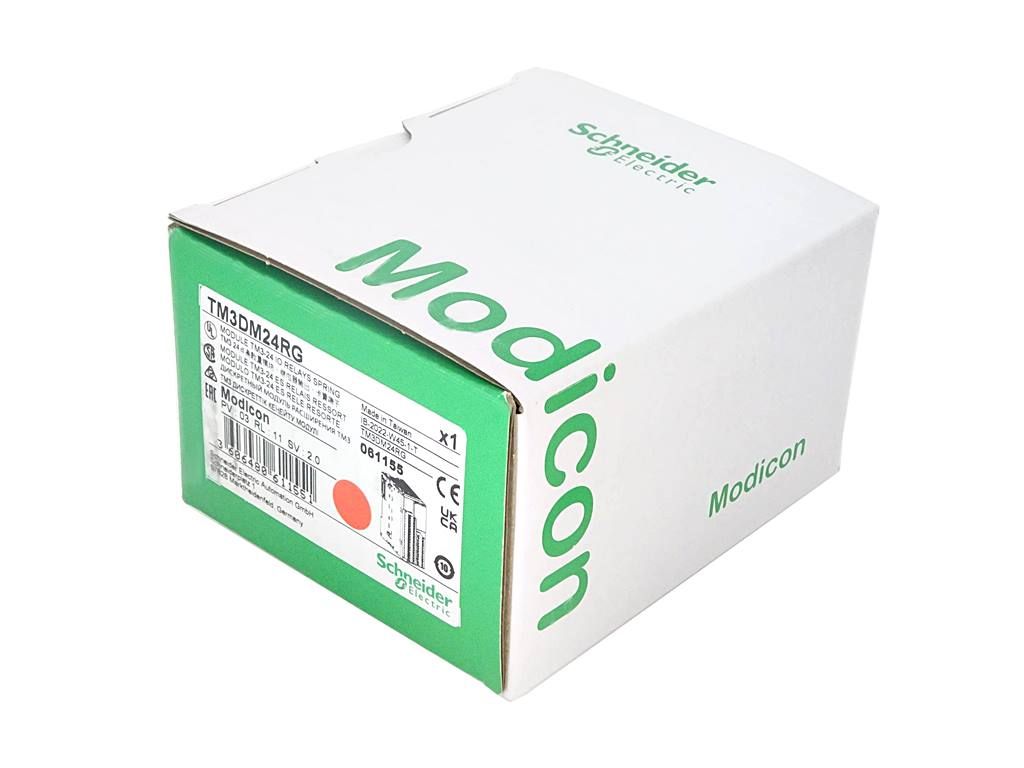

Manufacturer catalogue image
Product Description
Lifecycle Status:
The Modicon TM3 Discrete Input/Output Module is an expansion module designed for use with the Modicon M221, M241, M251, and M262 controllers. This module offers 16 input channels and 8 relay output channels, supporting sink or source (positive/negative) discrete logic.
It features a relay output voltage of 24V DC, 240V AC, with a current consumption of 65mA, 5mA at 5V DC via bus connector. This module is capable of controlling variable speed drives or any device equipped with a current or voltage input.
The product has an insulation between input/output and internal logic at 500V AC, input and output groups at 1500V AC, open contact at 750V AC, and non-insulated between inputs/outputs. It is equipped with removable spring terminals for electrical connection with a 3.81mm pitch adjustment for inputs and outputs.
This module is IP20 rated and has dimensions of 42.9mm (Width) x 84.6mm (Depth) x 90mm (Height), weighing 0.155kg. It is certified by CE, CULus, and C-Tick, meeting EN/IEC 61131-2 and EN/IEC 61010-2-201 standards.
The Modicon TM3 Discrete Input/Output Module supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. It is designed with a simple interlocking assembly mechanism, using a bus expansion connector to distribute data and power supply when assembling the Modicon TM3 modules with logic controllers.
Boost your controller's performance with the Modicon TM3 I/O system, specially designed for the Modicon...
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Switzerland, member since 2023- Availability:
- 10 pcs.In-StockUpdated at: 05-09-2026
- Warranty:
- 6 months
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Schneider Electric
- Input Impedance
- 3.4 kOhm
- Maximum Cable Distance Between Devices
- unshielded cable <30 m regular input
- Electrical Connection
- 17 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs || 11 x 1.5 mm² removable spring terminal block pitch 3.81 mm for outputs
- Maximum Current Per Output Common
- 7 A
- Discrete Input Voltage Type
- DC
- Current State 1 Guaranteed
- >= 2.5 mA input)
