Schneider Electric

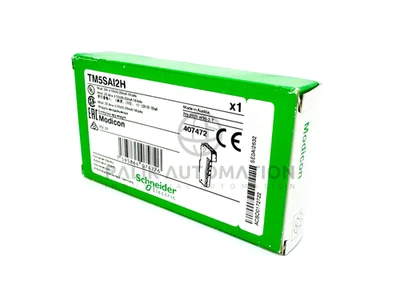

TM5SAI2H
1 / 2
Opis
Końcówka Serii
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The analogue input module provides 2 inputs with 16bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 2mA at 5V DC bus, 33mA at 24V DC input/output. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The input voltage is ±10V and input current is 0mA to 20mA differential with internal supply. It is an IP20 rated product. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.- Country of Origin
- AT
- Part Number
- TM5SAI2H
- Tariff Code
- 85389099
- EAN
- 3595864074726
- UNSPSC
- 32151703
Metody płatności:
- Najlepsza oferta od:
Zaufany dostawca Automa.Net- Dostępność:
- 1 szt.W magazynieZaktualizowano: 19-11-2024
- Gwarancja:
- 12 miesięcy
- Szacowany czas dostawy:
- Na zapytanie
- Stan produktu:
- Fabrycznie Nowe, Zapieczętowane
Fabrycznie Nowe, Zapieczętowane - Nowy, nieużywany, nieotwarty, nieuszkodzony przedmiot w oryginalnym opakowaniu zapieczętowanym przez producenta.
Informacje o wysyłce
Bezpieczny proces płatności
Zasady zwrotów i reklamacji
Zasady wysyłki
Gwarancja
Environment
- Product Certifications
- C-tick || GOST-R || cULus || CSA
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
- Standards
- CSA C22.2 No 142 || IEC 61131-2 || UL 508 || CSA C22.2 No 213
- Storage Altitude
- 0-3000 m
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
- Ip Degree Of Protection
- IP20IEC 61131-2
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
- Shock Resistance
- 15 gn 11 ms
- Disturbance Radiated/Conducted
- CISPR 11
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Pollution Degree
- 2 IEC 60664
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- 5-95 % without condensation
- Resistance To Electrostatic Discharge
- 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1511026EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511026EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- [Us] Rated Supply Voltage
- 24 V DC -15...20 %
- Input Impedance
- >= 20 mOhm voltage
- Measurement Error
- < 0.08 % of full scale +/- 10 V +/- 10 V 25 °C || < 0.08 % of full scale 0...20 mA 0...20 mA 25 °C
- Non-Linearity
- < 0.01 %FS voltage || < 0.015 %FS current
- Common Mode Rejection
- > 70 dB
- Supply
- internal
- Marking
- CE
- Net Weight
- 0.025 kg
- Type Of Cable
- shielded cable
- Current Consumption
- 2 mA 5 V DC bus || 50 mA 24 V DC input/output
- Maximum Power Dissipation In W
- 1.21 W
- Color
- White
- Load Impedance Ohmic
- <= 400 Ohm current)
- Isolation
- 500 Vrms AC insulation between channel and bus || no insulation between channels
- Local Signalling
- 1 LED green power supply || 1 LED red power supply || 2 LEDs green input status
- Temperature Coefficient
- 0.01 %FS/°C
- Range Compatibility
- Modicon LMC058 || Modicon M258
- Product Compatibility
- logic controller || motion controller
- Measurement Resolution
- 305 µV, +/- 10 V || 610 nA, 0...20 mA
- Sampling Duration
- 50 µs
Specifications
- Range Of Product
- Modicon TM5
- Product Or Component Type
- analog input module
- Analogue Input Resolution
- 15 bits + sign +/- 10 V || 15 bits 0...20 mA
- Analogue Input Number
- 2
- Analogue Input Type
- current 0...20 mA differential || voltage +/- 10 V differential
