Schneider Electric
VBD02
1 / 1
Description
Active Mature

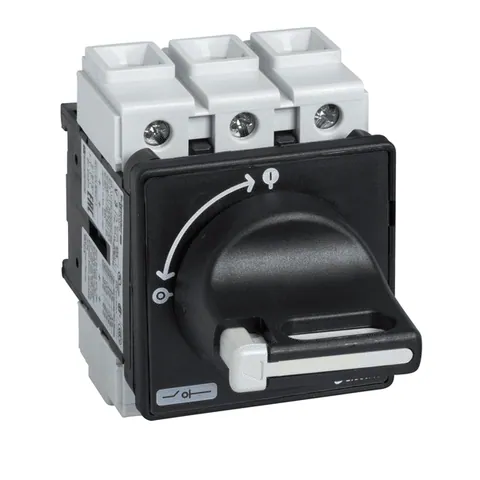

VBD02 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 4kW@400V AC-23. For door mounting with a single fixing, it provides a black & grey operator with IP65 protection. VBD02 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 4kW@400V AC-23. It consists of a V02 Vario switch body and a padlockable black & grey operator to be mounted on door with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V02 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ02), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).- Country of Origin
- CZ
- Part Number
- VBD02
- Tariff Code
- 85365080
- EAN
- 3389110724905
- UNSPSC
- 39122233
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 3 pcs.In-StockUpdated at: 21-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Environment
- Product Certifications
- UL || CCC || GL || CSA || UKCA
- Ambient Air Temperature For Operation
- -20-50 °C
- Standards
- IEC 60947-3
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP65
- Protective Treatment
- TC
- Compatibility Code
- main switch disconnector
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- Fire Resistance
- 960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211006
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- N/A
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Complementary
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Rotary Handle Mounting Style
- direct
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Height
- 74 mm
- Intermittent Duty Class
- 30
- [Ith] Conventional Free Air Thermal Current
- 12 A
- Network Type
- AC || DC
- Handle Front Plate Colour
- black
- Fixing Mode
- hole 22.5 mm handle
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Handle Colour
- black
- Marking
- 0 - 1
- Base Dimension
- 60 x 60 mm
- Net Weight
- 0.215 kg
- Performance Level
- high performance
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Making Capacity
- 120 A 400 V AC-21A || 120 A 400 V AC-22A || 120 A 400 V AC-23A
- Control Type
- rotary handle
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
- Contacts Type And Composition
- 3 NO
- [Icm] Rated Short-Circuit Making Capacity
- 1 kA 400 V at Ipeak
- Electrical Durability
- 100000 cycles AC-21 || 30000 cycles DC-1 || 30000 cycles DC-2 || 30000 cycles DC-3 || 30000 cycles DC-4 || 30000 cycles DC-5
- Suitability For Isolation
- yes
- [Ie] Rated Operational Current
- 8.1 A AC-23 Ue: 400 V
- Mounting Support
- handle door || switch door
- Mechanical Durability
- 100000 cycles
- Poles Description
- 3P
- Width
- 60 mm
- Tightening Torque
- power circuit 2.1-2.1 N.m screw clamp terminals
- Device Composition
- handle || switch
- Breaking Capacity
- 120 A 400 V AC-21A) || 120 A 400 V AC-22A) || 120 A 400 V AC-23A)
- Rated Operational Power In W
- 3 kW 400...415 V AC-3) || 4 kW 500 V AC-3) || 1.5 kW 230...240 V AC-3) || 5.5 kW 500 V AC-23A) || 5.5 kW 690 V AC-3) || 7.5 kW 690 V AC-23A) || 3 kW 230...240 V AC-23A) || 4 kW 400...415 V AC-23A)
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 12 A aM || 10 kA 400 V 12 A gG
- [Icw] Rated Short-Time Withstand Current
- 300 A 400 V 1 s
Specifications
- Product Or Component Type
- switch disconnector
- Product Name
- TeSys VARIO
- Range
- TeSys
- Device Application
- preventive maintenance
- Device Short Name
- VBD
