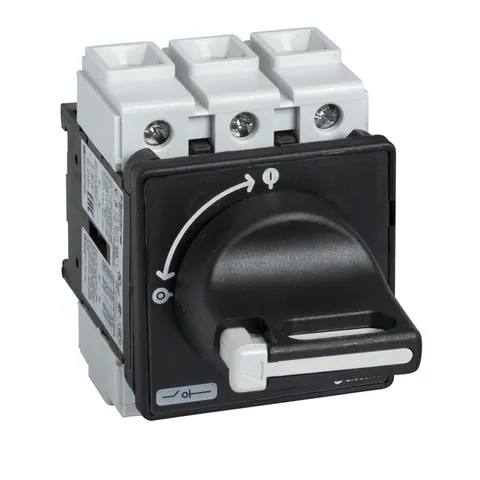

VBD1

Environment

Product Certifications

UL || GL || CSA || CCC || UKCA

Ambient Air Temperature For Operation

-20-50 °C

Standards

IEC 60947-3

Ip Degree Of Protection

IP20 conforming to IEC 60529 || IP65

Protective Treatment

TC

Compatibility Code

main switch disconnector

Mechanical Robustness

vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Fire Resistance

960 °C IEC 60695-2-1

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP2211006

Sustainable Offer Status

Green Premium product

Pvc Free

Yes

Toxic Heavy Metal Free

Yes

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile

N/A

Eu Rohs Directive

Compliant with Exemptions

Halogen Content Performance

Halogen free product

Complementary

Rotary Handle Padlocking

1 to 3 padlocks 4-8 mm

Rotary Handle Mounting Style

direct

[Ue] Rated Operational Voltage

690 V AC 50/60 Hz

Height

74 mm

Intermittent Duty Class

30

[Ith] Conventional Free Air Thermal Current

32 A

Network Type

DC || AC

Handle Front Plate Colour

black

Fixing Mode

hole 22.5 mm handle

[Ithe] Conventional Enclosed Thermal Current

25 A

Handle Colour

black

Marking

0 - 1

Base Dimension

60 x 60 mm

Net Weight

0.215 kg

Performance Level

high performance

[Uimp] Rated Impulse Withstand Voltage

8 kV

Making Capacity

320 A 400 V AC-21A || 320 A 400 V AC-22A || 320 A 400 V AC-23A

Control Type

rotary handle

Connections - Terminals

power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end

Contacts Type And Composition

3 NO

[Icm] Rated Short-Circuit Making Capacity

1 kA 400 V at Ipeak

Electrical Durability

100000 cycles AC-21 || 30000 cycles DC-1...5

Suitability For Isolation

yes

[Ie] Rated Operational Current

21.8 A AC-23 Ue: 400 V

Mounting Support

handle door || switch door

Mechanical Durability

100000 cycles

Poles Description

3P

Width

60 mm

Tightening Torque

power circuit 2.1-2.1 N.m screw clamp terminals

Device Composition

switch || handle

Breaking Capacity

250 A 400 V AC-21A) || 250 A 400 V AC-22A) || 250 A 400 V AC-23A)

Rated Operational Power In W

11 kW 500 V AC-23A) || 15 kW 690 V AC-23A) || 7.5 kW 500 V AC-3) || 7.5 kW 690 V AC-3) || 1.5 kW 230...240 V AC-3) || 5.5 kW 230...240 V AC-23A) || 11 kW 400...415 V AC-23A) || 7.5 kW 400...415 V AC-3)

Rated Conditional Short-Circuit Current

10 kA 400 V 35 A aM || 10 kA 400 V 35 A gG

[Icw] Rated Short-Time Withstand Current

384 A 400 V 1 s

Specifications

Product Or Component Type

switch disconnector

Product Name

TeSys VARIO

Range

TeSys

Device Application

preventive maintenance

Device Short Name

VBD

CAD Models

traceparts
