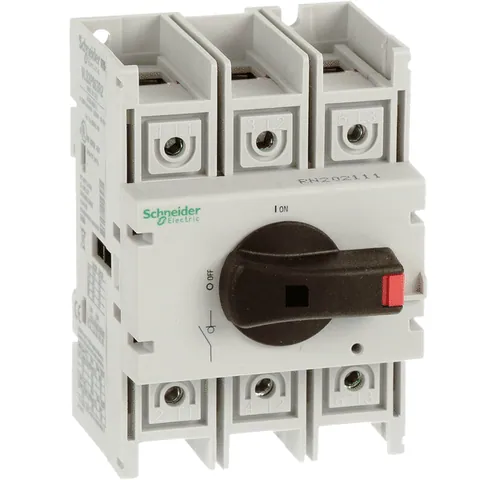

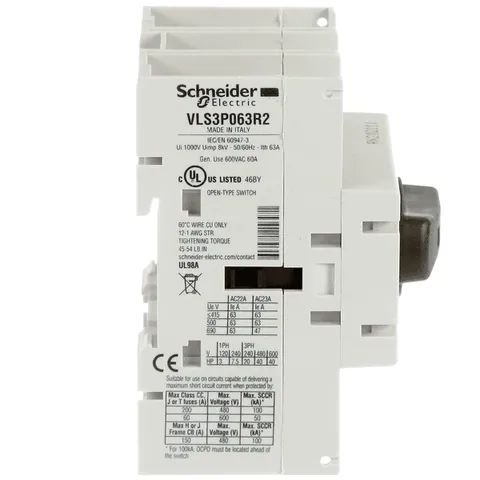

Schneider Electric VLS3P063R2

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This disconnect switch is rated 60A per UL. It has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 3 HP rating at 120 VAC and a 7.5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 20HP rating at 200 to 208 VAC and 240 VAC, a 40 HP rating at 480 VAC and a 40 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 50 kA at 600 V short circuit current rating (SCCR) with a 60A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 30 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase. The screw clamps will accept from 12 AWG to 1 AWG wire. The screw clamp terminals will also accept 4 mm to 70 mm wire. This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs. There are many accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.
