Schneider Electric

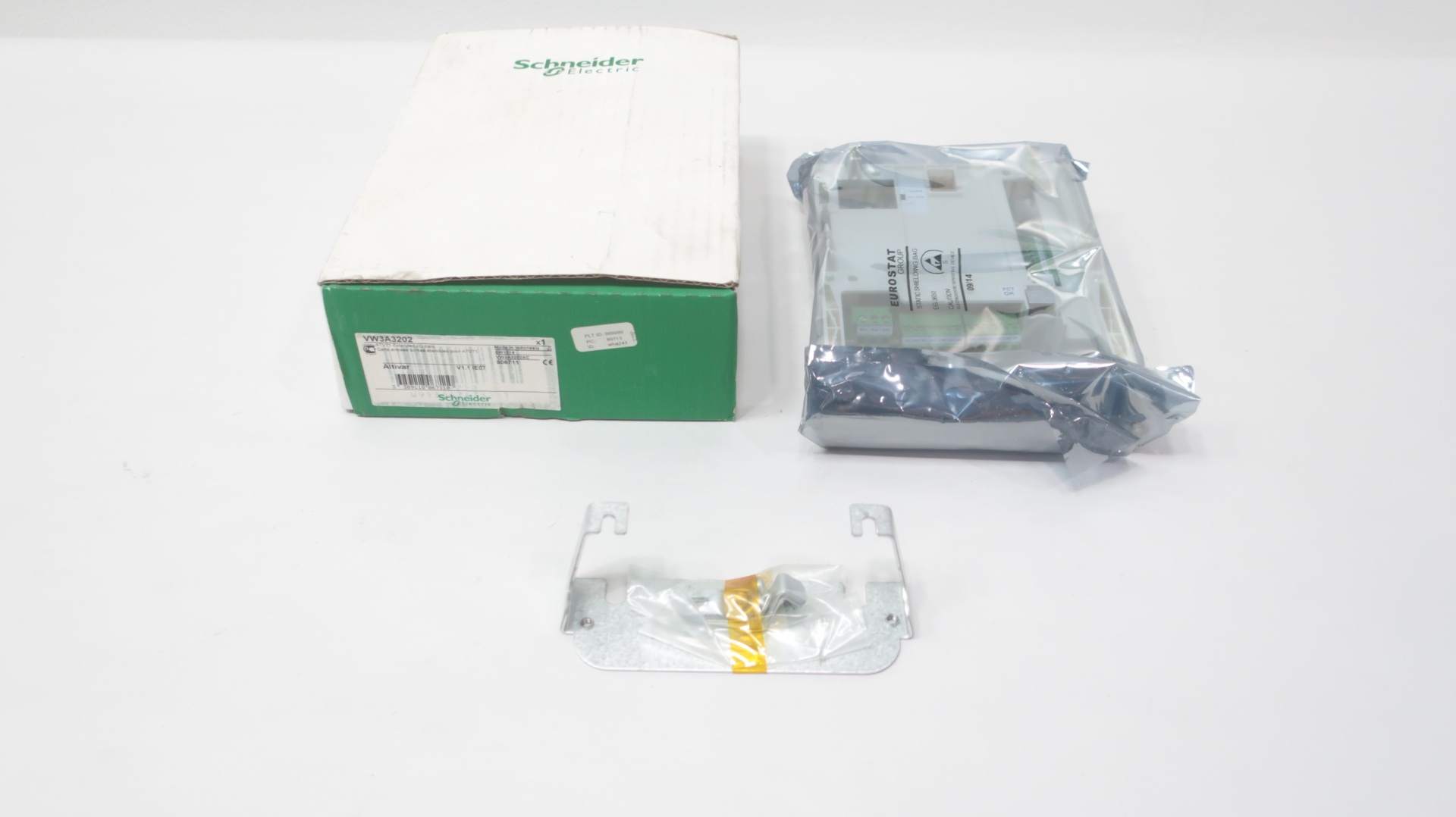

VW3A3202
extended Input Output card, Altivar
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€120.60
1
Payment methods:
A total of 331 Parts In-Stock from 30 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€102.18
Additional Information
- Part Number
- VW3A3202
- UNSPSC
- 39122004
- Tariff Code
- 8504909690
- Country of Origin
- ID
Specifications
- Discrete Input Logic
- negative LI11...LI14), >= 16 V, <= 10 V || positive LI11...LI14), <= 5 V, >= 11 V || positive RP), < 1.2 V, >= 3.5 V
- Analogue Output Type
- AO2 software-configurable current 0...20 mA 500 Ohm 4-6 ms 10 bits || AO2 software-configurable voltage +/- 10 V DC 470 Ohm 4-6 ms 10 bits || AO3 software-configurable current 0...20 mA 500 Ohm 4-6 ms 10 bits || AO3 software-configurable voltage +/- 10 V DC 470 Ohm 4-6 ms 10 bits
- Discrete Output Type
- LO3, LO4) assignable logic 4-6 ms level 1 PLC || R4A, R4B, R4C) configurable relay logic
- Product Or Component Type
- extended I/O card
- Analogue Input Number
- 2
- Discrete Output Number
- 5
- Discrete Input Type
- RP) frequency control 4-6 ms || LI11...LI14) programmable level 1 PLC 3.5 kOhm 4-6 ms
- Analogue Output Number
- 2
- Discrete Output Logic
- LO3, LO4) negative || LO3, LO4) positive
- Discrete Input Number
- 6
- Range Compatibility
- Altivar 61Q || Altivar Lift || Altivar 71Q || Altivar 71 || Altivar 61
- Analogue Input Type
- AI3-/Al3+ differential current programmable 0...20 mA 250 Ohm 4-6 ms 11 bits + sign || AI4 software-configurable current 0...20 mA 250 Ohm 4-6 ms 11 bits || AI4 software-configurable voltage 0...10 V DC, 24 V max 30000 Ohm 4-6 ms 11 bits
- Supply
- internal supply for reference potentiometer, 10.5 V DC 10-11 V) , <0.01 A 1-10 kOhm overload and short-circuit protection || internal supply, 24 V DC 21-27 V) , <0.2 A overload and short-circuit protection
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2010015EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Durability
- 100000 cycles configurable relay logic
- Discrete Input Voltage
- 24 V DC <= 30 V)programmable
- Maximum Switching Current
- configurable relay logic 5 A 250 V AC resistive, cos phi = 1 || configurable relay logic 5 A 30 V DC resistive, cos phi = 1 || configurable relay logic 1.5 A 250 V AC inductive, cos phi = 0.4 7 ms || configurable relay logic 1.5 A 30 V DC inductive, cos phi = 0.4 7 ms
- Discrete Output Voltage
- 24 V DC <= 30 V) assignable logic
- Net Weight
- 0.3 kg
- Maximum Output Current
- 0.2 A, assignable logic
- Minimum Switching Current
- 3 mA 24 V DC configurable relay logic
- Ptc Probe Input
- TH2+, TH2- trip resistance 3 kOhm || TH2+, TH2- reset resistance 1.8 Ohm || TH2+, TH2- short circuit protection < 0.05 Ohm || TH2+, TH2- for 6 PTC probe <= 1.5 Ohm
- Electrical Connection
- terminal, 1.5 mm² / AWG 16, 0.25 N.m
- Discrete Input Frequency
- 0...30 kHz frequency control
Contractual warranty
- Warranty
- 18 months
