Schneider Electric
VW3A3721

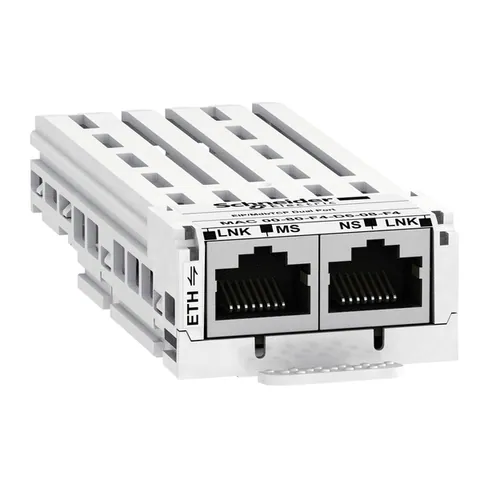

communication module EtherNet IP ModbusTCP MultiDrive Link , Altivar, 10 or 100Mbps, 2 x RJ45 connectors
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
£218.48
1
Payment methods:
A total of 28 Parts In-Stock from 18 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€177.10
Additional Information
- Part Number
- VW3A3721
- UNSPSC
- 39122004
- Tariff Code
- 8517620090
- Country of Origin
- ID
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2010006EN
- Sustainable Offer Status
- Green Premium product
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Communication Network Type
- IPv6 (internet protocol)
- Bus Profile
- CIP AC Drive || CiA 402
- Electrical Connection
- 2 connectors RJ45, Ethernet IP/Modbus TCP/MD-Link
- Exchange Mode
- half duplex and full duplex
- Net Weight
- 0.2 kg
- Topology
- daisy chain
- Communication Service
- SNMP agent Ethernet IP || Modbus TCP server Ethernet IP/Modbus TCP || Ethernet/IP adapter Ethernet IP || RSTP support Ethernet IP || FTP Ethernet IP || ODVA AC drive and CiA 402 profile Ethernet IP/Modbus TCP || auto-MDIX Ethernet IP/Modbus TCP || 32 parameters IN - 32 parameters OUT implicit messaging Ethernet IP/Modbus TCP || FDR Ethernet IP/Modbus TCP
- Communication Port Protocol
- MD-Link || EtherNet/IP || Modbus TCP
- Time Synchronisation Protocol
- SNTP
- Display Type
- 1 LED MS (Module Status) || 1 LED NS (Network Status) || 1 LED TX/RX (Transmit/Receive port 1) || 1 LED TX/RX (Transmit/Receive port 2)
- Web Services
- widgets (ID, control, data table, diagnostic, charts) || energy monitoring || customizable home page || save/restore drive configuration || Ethernet setting and diagnostic || pump function setting and monitoring || upgrade drive firmware || drive monitor || drive setting and diagnostic
- Range Compatibility
- Altivar Process ATV600 || Altivar Process Modular
- Transmission Rate
- 10/100 Mbps
- Web Server
- embedded HTTP server
Environment
- Product Certifications
- ODVA || Achilles level 2
Specifications
- Range Of Product
- Altivar
- Product Or Component Type
- communication module
