VW3A4551

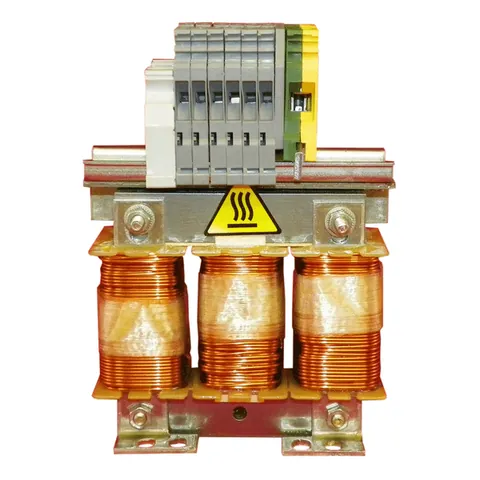

Name: line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive
Brand: Schneider Electric
SKU: VW3A4551
Availability: BackOrder

1 / 2

Description

Active Mature

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 4A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 10mH. It weighs 1.5kg and its dimensions are, 100mm wide, 135mm high, 60mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Country of Origin: HU
Part Number: VW3A4551
Tariff Code: 85045000
EAN: 3389118066014
UNSPSC: 26111515

Payment methods:

Best offer from:: Trusted Automa.Net Supplier
Availability:: 11 pcs.
In-Stock
Updated at: 21-11-2024
Warranty:: 12 months
Estimated Delivery:: On Request
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

Shipping Information

Secure Payment Process

Return & Refund Policies

Shipping Policies

Warranty Policies

Environment

Standards: VDE 0160 level 1 || IEC 60076 (with HD398) || EN 50178
Ambient Air Temperature For Operation: 45-55 °C with current derating of 2 % per °C) || 0-45 °C without current derating)
Shock Resistance: 15 gn 11 ms IEC 60068-2-27
Environmental Characteristic: 3B1 IEC 721-3-3 || 3C2 IEC 721-3-3 || 3S1 IEC 721-3-3
Vibration Resistance: 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Relative Humidity: 0-95 %
Pollution Degree: 2 EN 50178
Ambient Air Temperature For Storage: -25-70 °C
Ip Degree Of Protection: choke IP00 || terminals IP20
Operating Altitude: <= 3280.84 ft (1000 m) without current derating || 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes
Mercury Free: Yes
Toxic Heavy Metal Free: Yes
Reach Regulation: Free of Substances of Very High Concern above the threshold
California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc: Yes
China Rohs Regulation: X
Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Height: 135 mm
Net Weight: 1.5 kg
Leakage Distance: 11.5 mm IEC 60664
Electrical Insulation Class: class F
Minimum Clearance Distance: 5.5 mm IEC 60664
Max Current: 1.65 x nominal current 60 s)
Width: 100 mm
Depth: 60 mm
Maximum Voltage Drop At Rated Load: 5 %
Supply Frequency: 50...60 Hz

Specifications

Thermal Losses: 45 W
Range Of Product: Altivar
Product Or Component Type: line/motor choke
Phase: three phase
Value Of Inductance: 10 mH
Product Compatibility: ATV12H018F1 - motor choke - 1 per drive || ATV12H018M2 - motor choke - 1 per drive || ATV12H018M3 - motor choke - 1 per drive || ATV12H037F1 - motor choke - 1 per drive || ATV12H037M2 - motor choke - 1 per drive || ATV12H037M3 - motor choke - 1 per drive || ATV12H055M2 - motor choke - 1 per drive || ATV12P037F1 - motor choke - 1 per drive || ATV12P037M2 - motor choke - 1 per drive || ATV12P037M3 - motor choke - 1 per drive || ATV12P055M2 - motor choke - 1 per drive || ATV312H018M3 - line choke - 1 per drive || ATV312H037M3 - line choke - 1 per drive || ATV312H037N4 - line choke - 1 per drive || ATV312H055M3 - line choke - 1 per drive || ATV312H055N4 - line choke - 1 per drive || ATV312H075M3 - line choke - 1 per drive || ATV312H075N4 - line choke - 1 per drive || ATV312H075S6 - line choke - 1 per drive || ATV312HU11N4 - line choke - 1 per drive || ATV312HU15N4 - line choke - 1 per drive || ATV312HU15S6 - line choke - 1 per drive || ATV32H037N4 - line choke - 1 per drive || ATV32H055N4 - line choke - 1 per drive || ATV32H075N4 - line choke - 1 per drive || ATV32HU11N4 - line choke - 1 per drive || ATV32HU15N4 - line choke - 1 per drive || ATV61H075M3 - line choke - 1 per drive || ATV61H075N4 - line choke - 1 per drive || ATV61HU15N4 - line choke - 1 per drive || ATV61HU30Y - line choke - 1 per drive || ATV61W075N4 - line choke - 1 per drive || ATV61W075N4C - line choke - 1 per drive || ATV61WU15N4 - line choke - 1 per drive || ATV61WU15N4C - line choke - 1 per drive || ATV71H037M3 - line choke - 1 per drive || ATV71H075M3 - line choke - 1 per drive || ATV71H075N4 - line choke - 1 per drive || ATV71HU15N4 - line choke - 1 per drive || ATV71HU22Y - line choke - 1 per drive || ATV71HU30Y - line choke - 1 per drive || ATV71P075N4Z - line choke - 1 per drive || ATV71PU15N4Z - line choke - 1 per drive || ATV71W075N4 - line choke - 1 per drive || ATV71WU15N4 - line choke - 1 per drive || ATV61HU22S6X - line choke - 1 per drive || ATV71HU15S6X - line choke - 1 per drive || ATV71HU22S6X - line choke - 1 per drive || ATV31C037N4 - line choke - 1 per drive || ATV31C055N4 - line choke - 1 per drive || ATV31C075N4 - line choke - 1 per drive || ATV31CU11N4 - line choke - 1 per drive || ATV31CU15N4 - line choke - 1 per drive || variable speed drive ATV310 0.37 kW - line choke - 1 per drive || variable speed drive ATV310 0.75 kW - line choke - 1 per drive || variable speed drive ATV340 0.75 kW 380...480 V - line choke - 1 per drive || variable speed drive ATV340 1.5 kW 380...480 V - line choke - 1 per drive || variable speed drive ATV320 0.37 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.55 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.75 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 1.1 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 1.5 kW 380...500 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.18 kW 200...240 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.37 kW 200...240 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.55 kW 200...240 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.75 kW 200...240 V - three phase - line choke - 1 per drive || variable speed drive ATV320 0.75 kW 525...600 V - three phase - line choke - 1 per drive || variable speed drive ATV320 1.5 kW 525...600 V - three phase - line choke - 1 per drive || variable speed drive ATV320 2.2 kW 525...600 V - three phase - line choke - 1 per drive || variable speed drive ATV630 2.2 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV630 3 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV630 4 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV930 2.2 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV930 3 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV930 4 kW 500...690 V - three phase - line choke - 1 per drive || variable speed drive ATV630 600 V - three phase - line choke - 3 hp - 1 per drive || variable speed drive ATV930 600 V - three phase - line choke - 3 hp - 1 per drive || variable speed drive ATV310L 0.75 kW || variable speed drive ATV310L 1.5 kW || variable speed drive ATV310L 2.2 kW || variable speed drive ATV310L 3.0 kW || variable speed drive ATV310L 4.0 kW || variable speed drive ATV310L 5.5 kW
Electrical Connection: terminal 2.5 mm² / AWG 12, 0.4-0.6 N.m
Line Rated Current: 4 A
Range Compatibility: Altivar 61 || Altivar 312 || Altivar Process ATV900 || Altivar 32 || Altivar 312 Solar || Altivar Process ATV600 || Altivar 31C || Lexium 62 || Easy Altivar 310 || Altivar Machine ATV340 || Altivar Machine ATV320 || Altivar 71 || Altivar 12 || Easy Altivar 310L
Device Application: reduction of current harmonics
