Schneider Electric VW3A4555

Name: line/motor choke - 0.5 mH - 60 A - 3 phases - 94 W - for variable speed drive
Brand: Schneider Electric
SKU: VW3A4555

line/motor choke - 0.5 mH - 60 A - 3 phases - 94 W - for variable speed drive

1 / 2

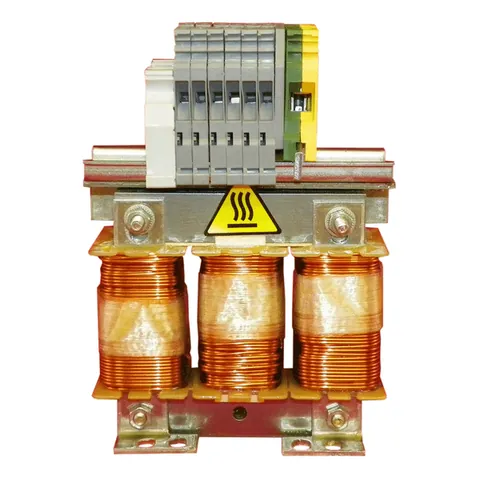

Manufacturer catalogue image

Product Description

Lifecycle Status:

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.5mH. It weighs 11kg and its dimensions are, 180mm wide, 210mm high, 165mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United States, member since 2023
Availability:: 3 pcs.
In-Stock
Updated at: 14-09-2026
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Standards: EN 50178 || IEC 60076 (with HD398) || VDE 0160 level 1
Ambient Air Temperature For Operation: 45-55 °C with current derating of 2 % per °C) || 0-45 °C without current derating)
Shock Resistance: 15 gn 11 ms IEC 60068-2-27
Environmental Characteristic: 3B1 IEC 721-3-3 || 3C2 IEC 721-3-3 || 3S1 IEC 721-3-3
Vibration Resistance: 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Relative Humidity: 0-95 %
