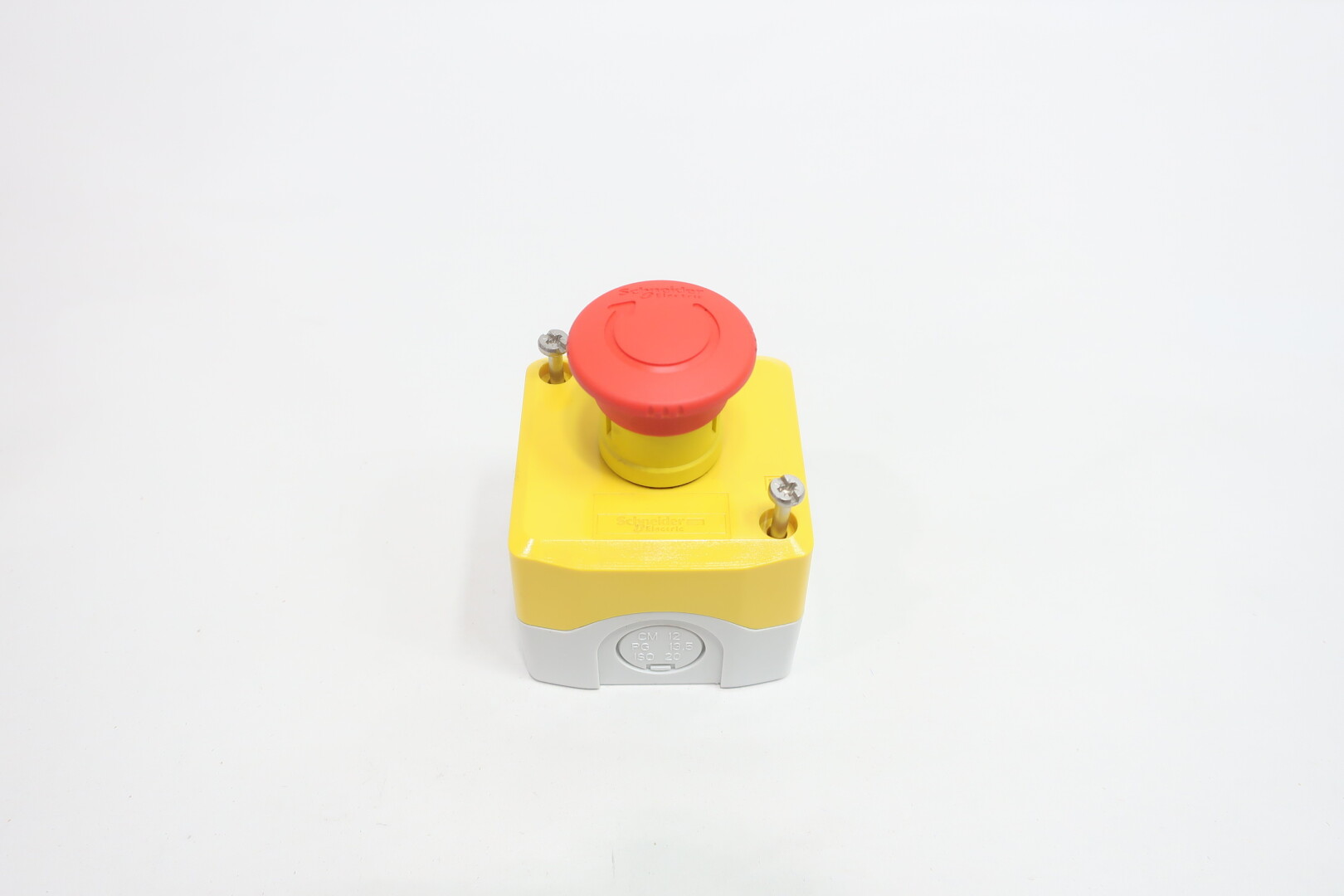

XALK178GH7

Environment

Product Certifications

CSA || UL Listed

Ik Degree Of Protection

IK03 EN 50102

Ambient Air Temperature For Operation

-40-70 °C

Standards

IEC 60364-5-53 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/ISO 13850 || JIS C 4520 || EN/IEC 60947-1 || UL 508 || EN/IEC 60204-1

Shock Resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Vibration Resistance

5 gn 12-500 Hz)IEC 60068-2-6

Ip Degree Of Protection

IP66 IEC 60529 || IP67 || IP69 || IP69K

Ambient Air Temperature For Storage

-40-70 °C

Overvoltage Category

class II IEC 60536

Nema Degree Of Protection

NEMA 13 || NEMA 4X

Protective Treatment

TH

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1806010EN

Sustainable Offer Status

Green Premium product

Toxic Heavy Metal Free

Yes

Reach Regulation

Free of Substances of Very High Concern above the threshold

Reach Free Of Svhc

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1806010EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Operating Force

44 N NC + NO changing electrical state

Short-Circuit Protection

10 A cartridge fuse gG EN/IEC 60947-5-1

Operating Travel

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Contacts Material

silver alloy (Ag/Ni)

Positive Opening

with EN/IEC 60947-5-1 appendix K

[Ith] Conventional Free Air Thermal Current

10 A EN/IEC 60947-5-1

Cable Entry

1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm

Net Weight

0.194 kg

[Uimp] Rated Impulse Withstand Voltage

6 kV EN/IEC 60947-1

Resistance To High Pressure Washer

7000000 Pa 55 °C 0.1 m

Electrical Durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1

[Ui] Rated Insulation Voltage

600 V 3)EN/IEC 60947-1

[Ie] Rated Operational Current

3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

Mechanical Durability

300000 cycles

Electrical Reliability

λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4

Tightening Torque

0.8-1.2 N.m EN/IEC 60947-1

Shape Of Screw Head

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Specifications

Control Station Application

emergency stop function || emergency switching off function

Product Destination

for XB5 Ø 22 mm control and signalling units

Reset

turn to release

Range Of Product

Harmony XALK

Colour Of Base Of Enclosure

light grey RAL 7035)

Control Station Composition

1 mushroom head Ø 40 mm push-button, red 1 NO + 2 NC unmarked

Operators Description

red unmarked 1 NO + 2 NC

Product Or Component Type

complete control station

Material

polycarbonate

Operator Profile

1 mushroom head push-button

Colour Of Cover

yellow RAL 1021)

Contact Operation

slow-break

Device Short Name

XALK
