Schneider Electric XB4BA31

Name: Harmony 22mm Push Button, Green Flush, Spring Return, Unmarked
Brand: Schneider Electric
SKU: XB4BA31

Harmony 22mm Push Button, Green Flush, Spring Return, Unmarked

1 / 5

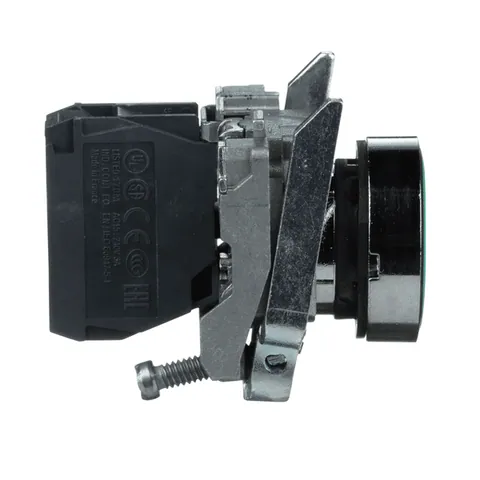

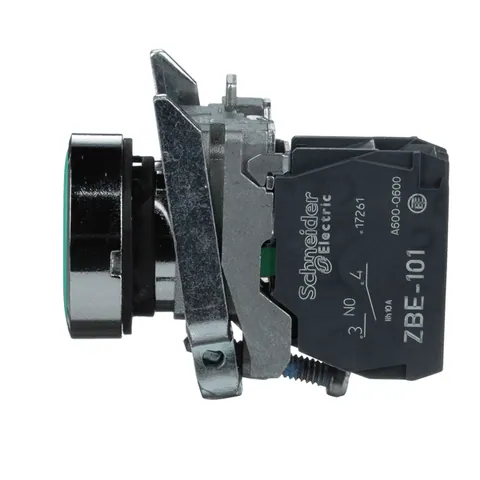

Manufacturer catalogue image

Product Description

Lifecycle Status:

Introducing the Harmony 22mm modular push buttons, selector switches, and pilot lights, a product designed to cater to the needs of industries worldwide. This range is known for its simplicity in setup, flexibility, and robust construction.

The innovative locking system, consisting of a snap-fit head and body that can be tightened with a single screw, ensures easy yet secure mounting. The Harmony XB4/ZB4 series are 22mm chromium plated metal modular push buttons, selector switches, and pilot lights, connecting to a fully metal mounting collar.

The Harmony XB5/ZB5 series are 22mm plastic modular push buttons, selector switches, and pilot lights. These operators can have round and square plastic bezels. They are impact resistant, dust resistant, water resistant, and vibration resistant, making them ideal for operation in harsh environments.

The contacts can be used for low load electrical contact and high power applications. Shake-proof connection screws make periodic retightening unnecessary. A complete set of accessories is provided to cater to applications where exposure to high pressure cleaning, dust, and extreme temperatures is a daily occurrence.

These Harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. They are certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS, and many more.

They have UL and CE markings and have ratings up to IP66 and...

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United Kingdom, member since 2021
Availability:: 32 pcs.
In-Stock
Updated at: 31-10-2025
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Schneider Electric
Product Certifications: CSA || GL || BV || UL Listed || DNV || LROS (Lloyds register of shipping)
Ik Degree Of Protection: IK06 IEC 50102
Ambient Air Temperature For Operation: -40-70 °C
Standards: JIS C8201-5-1 || IEC 60947-5-5 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Shock Resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
