Schneider Electric
XB4BV8B1
- Condition:
- New Surplus
- Available:
- 1 pc.In-StockUpdated at: 31-10-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
XB4BV8B1
1 / 1
Description

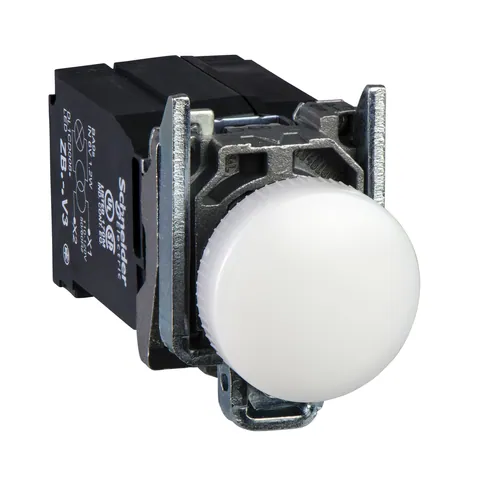

This Harmony XB4 plain lens illuminated modular white pilot light is supplied with 440V to 460V AC, uses an integral LED with transformer. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination and transformer. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.- Country of Origin
- FR
- Part Number
- XB4BV8B1
- Tariff Code
- 85318070
- EAN
- 3389119039536
- UNSPSC
- 39121534
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 4 pcs.In-StockUpdated at: 09-07-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
A total of 6 Parts In-Stock from 3 Distributors
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Available Offers (2)
Schneider Electric
XB4BV8B1
- Condition:
- New Surplus
- Available:
- 1 pc.In-StockUpdated at: 21-10-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
Offer with manufacturer lead time
Ships in:On Request
Best price:
€15.11
Specifications
- Operator Additional Information
- with plain lens
- Range Of Product
- Harmony XB4
- Light Source
- protected LED
- Light Block Supply
- via transformer 1.2 VA 24 V
- Mounting Diameter
- 22 mm
- Product Or Component Type
- pilot light
- Shape Of Signaling Unit Head
- round
- Cap/Operator Or Lens Colour
- white
- Fixing Collar Material
- zamak
- Head Type
- standard
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Light Source Colour
- white
- Device Short Name
- XB4
- [Us] Rated Supply Voltage
- 440...460 V AC 60 Hz
- Bulb Base
- integral LED
Contractual warranty
- Warranty
- 18 months
Complementary
- Net Weight
- 0.172 kg
- Cad Overall Height
- 47 mm
- Device Presentation
- complete product
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
- Service Life
- 100000 h at rated voltage and 25 °C
- Surge Withstand
- 1 kV IEC 61000-4-5
- [Ui] Rated Insulation Voltage
- 600 V 3)EN/IEC 60947-1
- Signalling Type
- steady
- Supply Voltage Limits
- 441-459 V AC
- Cad Overall Width
- 40 mm
- Cad Overall Depth
- 90 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- UL Listed || CSA
- Ik Degree Of Protection
- IK06 IEC 50102
- Ambient Air Temperature For Operation
- -40-70 °C
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Standards
- EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
- Shock Resistance
- 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 2 gn 12-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Electrical Shock Protection Class
- class I IEC 60536
- Protective Treatment
- TH
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Electromagnetic Emission
- class B IEC 55011
