Schneider Electric
XB5KS2B8

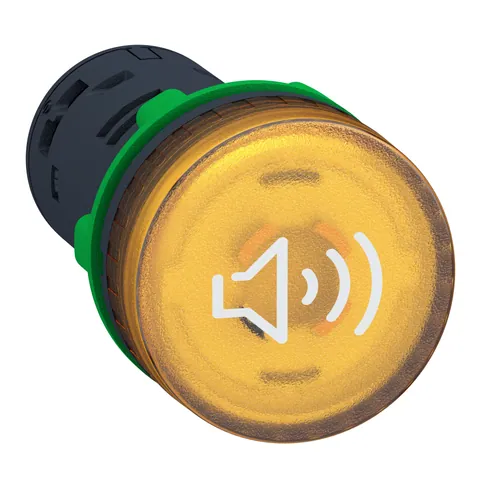

Annunciator, Harmony XB5, Illuminated buzzer, plastic, yellow, 22mm, continuous or intermittent tone, 24V AC DC
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
286,90 zł
1
Payment methods:
A total of 48 Parts In-Stock from 18 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€19.75
Additional Information
- Part Number
- XB5KS2B8
- UNSPSC
- 39121534
- Tariff Code
- 8531809051
- Country of Origin
- ID
Complementary
- [Us] Rated Supply Voltage
- 24 V +/- 10 %
- Height
- 29 mm
- Net Weight
- 0.024 kg
- Current Consumption
- <= 58 mA
- Resistance To High Pressure Washer
- 9000000 Pa 80 °C 0.1 m
- Noise Level
- 90 dB 6.8 kHz 0.1 m +/- 10 %
- Signalling Type
- continuous or intermittent tone
- Supply Circuit Type
- AC/DC
- Width
- 29 mm
- Depth
- 55 mm
- Supply Frequency
- 50/60 Hz
Environment
- Product Certifications
- UL Listed || CSA || BV
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1 || IEC 60529 || IEC 62262 || IEC 50102
- Nema Degree Of Protection
- NEMA 4X || NEMA 13
- Ambient Air Temperature For Storage
- -40-70 °C
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TH
Specifications
- Range Of Product
- Harmony XB5
- Mounting Diameter
- 22 mm
- Product Or Component Type
- annunciator
- Cap/Operator Or Lens Colour
- yellow
- Bezel Material
- plastic
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1710008EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
