Schneider Electric
XB7EV03MP
- Condition:
- New Factory Sealed
- Available:
- 69 pcs.In-StockUpdated at: 17-05-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
£18.99
netSchneider Electric
XB7EV03MP
1 / 5
Description
Active Mature

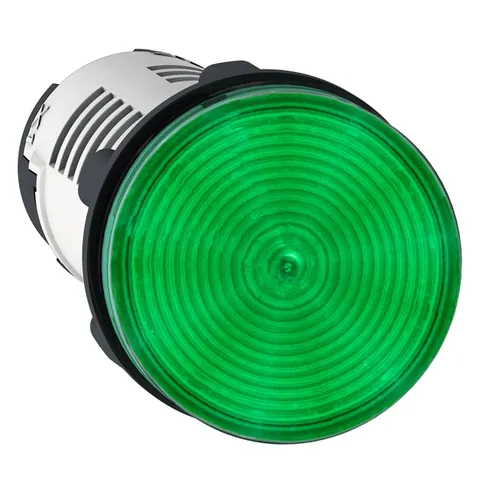

This Harmony XB7, plain lens monolithic green pilot light is supplied with 230V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.- Country of Origin
- ID
- Part Number
- XB7EV03MP
- Tariff Code
- 85318070
- EAN
- 3389110839753
- UNSPSC
- 39121534
€13.91
net1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 4 pcs.In-StockUpdated at: 08-11-2024
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
A total of 6,896 Parts In-Stock from 34 Distributors
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Available Offers (40)
Schneider Electric
XB7EV03MP
- Condition:
- New Factory Sealed
- Available:
- 101 pcs.In-StockUpdated at: 12-06-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
1
Schneider Electric
XB7EV03MP
- Condition:
- New Factory Sealed
- Available:
- 5 pcs.In-StockUpdated at: 15-01-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
XB7EV03MP
- Condition:
- New Factory Sealed
- Available:
- 100 pcs.In-StockUpdated at: 25-06-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
XB7EV03MP
- Condition:
- New Factory Sealed
- Available:
- 5 pcs.In-StockUpdated at: 04-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
1
Offer with manufacturer lead time
Ships in:On Request
Best price:
€2.86
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-1 || UL 508 || JIS C8201-1
- Electromagnetic Compatibility
- disturbing field emission class B conforming to IEC 55011
- Shock Resistance
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Ambient Air Temperature For Storage
- -40-70 °C
- Overvoltage Category
- class II IEC 60536
- Nema Degree Of Protection
- NEMA 4 UL 50 E || NEMA 12 UL 50 E
- Protective Treatment
- TH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1805012EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1805012EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 29 mm
- Terminals Description Iso N°1
- (X1-X2)PL
- Fixing Center
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Net Weight
- 0.02 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Current Consumption
- 16...20 mA
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Service Life
- 70000 h at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Signalling Type
- steady
- Supply Voltage Limits
- 195-264 V AC
- Width
- 29 mm
- Depth
- 54 mm
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Shape Of Screw Head
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
Specifications
- [Us] Rated Supply Voltage
- 230...240 V AC 50/60 Hz
- Range Of Product
- Harmony XB7
- Light Source
- LED
- Mounting Diameter
- 22 mm
- Product Or Component Type
- pilot light
- Shape Of Signaling Unit Head
- round
- Cap/Operator Or Lens Colour
- green
- Device Presentation
- monolithic product
- Sale Per Indivisible Quantity
- 10
- Device Short Name
- XB7
- Bulb Base
- integral LED
