Schneider Electric
XESD2201
- Condition:
- Refurbished
- Available:
- 1 pc.In-StockUpdated at: 08-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
XESD2201
1 / 1
Description
Active Mature

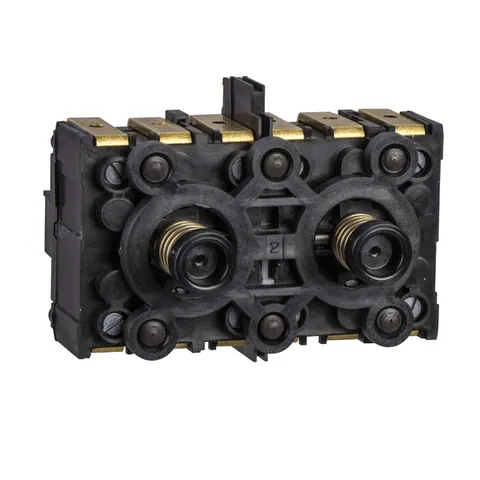

This contact block is a separate component of the range of pendant control stations Harmony XAC. It consists in a double block 3-pole with 2 spring return operators mechanically interlocked (operator centres 40 mm). It features 3 NO functions and and screw clamp connection type. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed and replaced on XACB pendant control stations (front mounting). It weighs 200g. It is designed for power circuits simple speed applications.- Country of Origin
- CZ
- Part Number
- XESD2201
- Tariff Code
- 85389099
- EAN
- 3389110644005
- UNSPSC
- 39121522
Payment methods:
- Best offer from:
- Trusted Automa.Net Supplier
- Availability:
- 1 pc.In-StockUpdated at: 30-04-2024
- Estimated Delivery:
- On Request
- Condition:
- Refurbished
Refurbished - A refurbished item inspected, cleaned, and repaired to full working order by either the manufacturer or a certified technician. The item is in excellent condition and fully operational.
A total of 19 Parts In-Stock from 5 Distributors
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Available Offers (9)
Schneider Electric
XESD2201
- Condition:
- Refurbished
- Available:
- 1 pc.In-StockUpdated at: 08-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
XESD2201
- Condition:
- New Surplus
- Available:
- 1 pc.In-StockUpdated at: 21-10-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- 29 November - 04 December to United Kingdom
1
£325.00
netShipping from:
£99.00
Schneider Electric
XESD2201
- Condition:
- New Surplus
- Available:
- 4 pcs.In-StockUpdated at: 21-10-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- 29 November - 04 December to United Kingdom
1
Shipping from:
£99.00
Schneider Electric
XESD2201
- Condition:
- New Surplus
- Available:
- 4 pcs.In-StockUpdated at: 08-11-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
XESD2201
- Condition:
- New Surplus
- Available:
- 4 pcs.In-StockUpdated at: 08-11-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Schneider Electric
XESD2201
- Condition:
- New Surplus
- Available:
- 1 pc.In-StockUpdated at: 21-10-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- 05-11 December to United Kingdom
1
Shipping from:
£99.00
Schneider Electric
XESD2201
- Condition:
- New Surplus
- Available:
- 1 pc.In-StockUpdated at: 21-10-2024
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- On Request
1
Schneider Electric
XESD2201
- Condition:
- New Surplus
- Available:
- 1 pc.In-StockUpdated at: 21-11-2024
- Offer from:
Trusted Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Offer with manufacturer lead time
Ships in:On Request
Best price:
€46.01
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- IEC 60947-3 || EN 60947-3 || CSA C22.2 No 14
- Shock Resistance
- 100 gn IEC 60068-2-27
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Terminal Identifier
- (13-14)NO || (11-12)NC
- Terminals Description Iso N°2
- (53-54)NO || B || (63-64)NO || (73-74)NO
- Terminals Description Iso N°1
- (23-24)NO || B || (33-34)NO || (13-14)NO
- Horizontal Fixing Centres
- 40 mm
- [Ithe] Conventional Enclosed Thermal Current
- 20 A
- Short-Circuit Protection
- 12 A fuse protection cartridge aM
- Net Weight
- 0.2 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Electrical Durability
- 1000000 cycles AC-3, 3000 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 1000000 cycles AC-4, 3000 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 700000 cycles AC-3, 3000 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 700000 cycles AC-4, 3000 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A
- Connections - Terminals
- screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
- [Ui] Rated Insulation Voltage
- 300 VCSA
- Mechanical Durability
- 1000000 cycles
- Rated Power In Hp
- 3 hp 240 V
- Operating Force
- 32 N
- Rated Operational Power In W
- 3000 W AC-3 240 V || 3000 W AC-4 400 V
Specifications
- Mounting Of Block
- front mounting
- Range Of Product
- Harmony XAC
- Contact Block Type
- double
- Product Or Component Type
- contact block
- Contact Block Application
- single speed
- Component Name
- XESD
- Contacts Type And Composition
- 3 NO
- Contact Operation
- snap action
- Mechanical Interlocking
- with mechanical interlocking
- Poles Description
- 3-pole
- Type Of Operator
- 2 spring return
- Electrical Circuit Type
- power circuit
- Product Compatibility
- XACB
