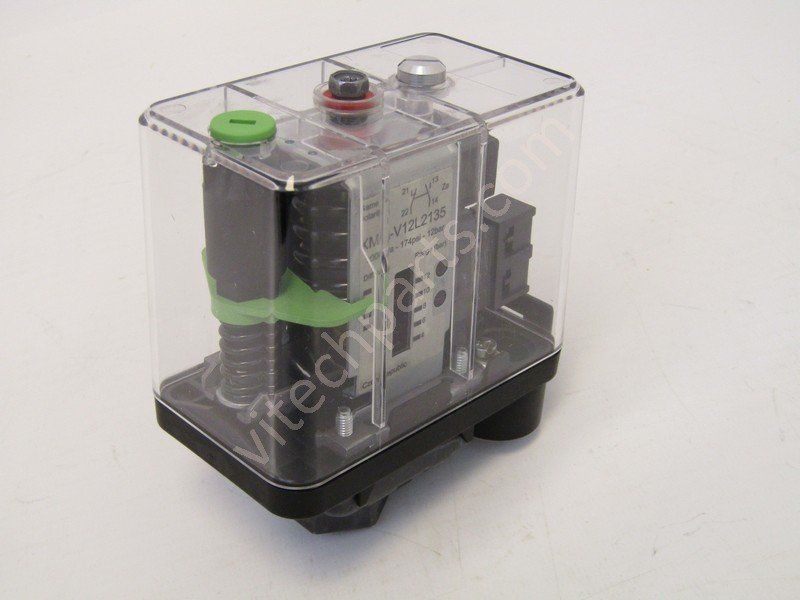

Schneider Electric XMAV12L2135

The Electromechanical Pressure Switch XM-A12-L2135 is a part of the XMA range, offering a solution for electromechanical pressure switches in control circuits. This switch is designed to regulate between two thresholds with an adjustable differential. The primary function of these pressure switches is to control or regulate pressure levels in hydraulic systems by converting pressure changes into digital electrical signals when the preset switching points are reached.

This specific pressure switch has a range of switching point, or rising pressure, from 1.3bar to 12bar (18.85psi to 174psi). The electromechanical technology ensures reliability and ease of use. It incorporates one C/O single-pole contact, snap action. The switch features a diaphragm pressure actuator and a transparent cover with an external setting screw, a G 1/4 female fluid connector and two entries tapped for n°13 (DIN Pg 13.5) cable gland.

This product is suitable for controlling air, fresh water, and sea water up to +70°C. It complies with UL, CSA, EAC, CCC certifications and with CE, IEC/EN 60947-5-1 standards. Dedicated accessories are available to facilitate the setting of the switch. These include a knurled adjustment knob, fixing bracket, 13P cable glands, diaphragms, etc.

The XMA range offers high reliability, quality, long life duration, and worldwide availability.
