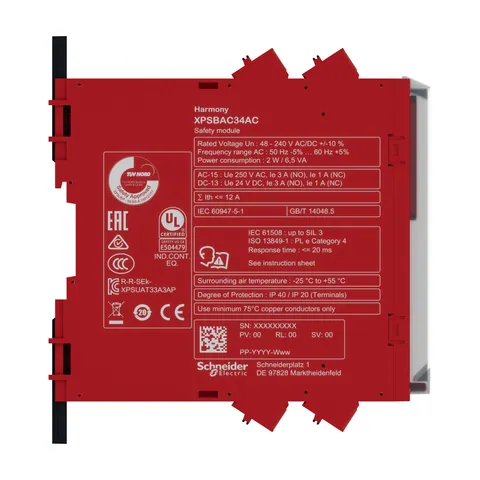

XPSBAC34AC

Specifications

[Us] Rated Supply Voltage

48...240 V AC - 15...10 % || 48...240 V DC - 20...20 %

Range Of Product

Harmony Safety Automation

Product Or Component Type

safety module

Safety Module Name

XPSBAC

Connections - Terminals

removable spring terminal block, 0.2...2.5 mm² solid or flexible || removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel || removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel

Safety Module Application

for emergency stop and protective guard applications

Safety Reliability Data

MTTFd > 30 years for normally open relay contact ISO 13849-1 || Dcavg >= 99 % for normally open relay contact ISO 13849-1 || PFHd = 1.01E-09 for normally open relay contact ISO 13849-1 || HFT = 1 for normally open relay contact IEC 62061 || PFHd = 1.01E-09 for normally open relay contact IEC 62061 || SFF > 99% for normally open relay contact IEC 62061 || HFT = 1 for normally open relay contact IEC 61508-1 || PFHd = 1.01E-09 for normally open relay contact IEC 61508-1 || SFF > 99% for normally open relay contact IEC 61508-1 || type = B for normally open relay contact IEC 61508-1 || MTTFd > 30 years for normally closed relay contact ISO 13849-1 || DC > 60 % for normally closed relay contact ISO 13849-1 || PFHd = 1.01E-09 for normally closed relay contact ISO 13849-1 || HFT=0 for normally closed relay contact IEC 62061 || PFHd = 1.01E-09 for normally closed relay contact IEC 62061 || SFF > 60% for normally closed relay contact IEC 62061 || HFT=0 for normally closed relay contact IEC 61508-1 || PFHd = 1.01E-09 for normally closed relay contact IEC 61508-1 || SFF > 60% for normally closed relay contact IEC 61508-1 || type = B for normally closed relay contact IEC 61508-1

Electrical Circuit Type

NC pair

Function Of Module

emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches

Safety Level

can reach PL e/category 4 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508 || can reach PL c/category 1 for normally closed relay contact ISO 13849-1 || can reach SILCL 1 for normally closed relay contact IEC 62061 || can reach SIL 1 for normally closed relay contact IEC 61508

Complementary

Terminal Identifier

power supply

Number Of Outputs

0

Height

100 mm

Mounting Support

35 mm symmetrical DIN rail

Minimum Output Voltage

5 V relay output

Response Time

60 ms at 48...240 V AC/DC

Minimum Output Current

10 mA relay output

[Ith] Conventional Free Air Thermal Current

6 A

Associated Fuse Rating

10 A gG NO relay output circuit IEC 60947-1

Local Signalling

LED green power power ON || LED red error error || LED yellow state status || LED yellow start1 start input || LED yellow start2 start input

[Uimp] Rated Impulse Withstand Voltage

4 kV II IEC 60947-1

Net Weight

0.200 kg

Type Of Start

automatic/manual/monitored

Number Of Inputs

0

Input Compatibility

normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850

Power Consumption In Va

6.0 VA 48...240 V AC 50/60 Hz

[Ie] Rated Operational Current

5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally closed relay contact || 3 A DC-1 for normally closed relay contact || 1 A DC-13 for normally closed relay contact

Auxiliary Contact Composition

4 NO + 1 NC

[Ui] Rated Insulation Voltage

300 V 2)IEC 60947-1

Power Consumption In W

2.0 W 48...240 V DC

Input Protection Type

internal, electronic

Width

22.5 mm

Depth

120 mm

Synchronisation Time Between Inputs

unlimited

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP1811003EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1811003EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Environment

Product Certifications

TÜV || cULus

Ambient Air Temperature For Operation

-25-55 °C

Ip Degree Of Protection

IP20 terminals)IEC 60529 || IP40 housing)IEC 60529 || IP54 mounting area)IEC 60529

Standards

IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard

Relative Humidity

5-95 % non-condensing

CAD Models

traceparts
