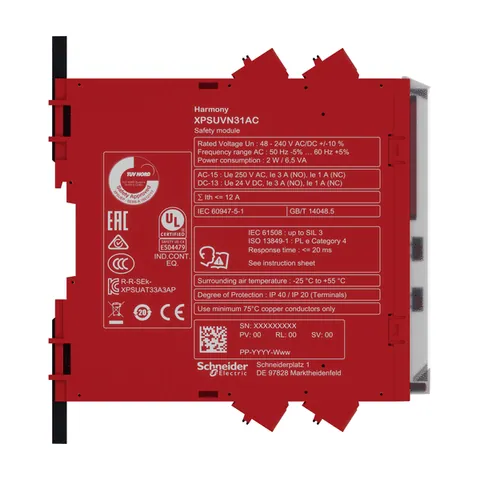

Schneider Electric
XPSUVN31AC
Safety module, Harmony Safety Automation, Zero speed monitoring with time delay, 48-240 V AC/DC, spring
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
1
Payment methods:
A total of 5 Parts In-Stock from 15 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€167.63
Additional Information
- Part Number
- XPSUVN31AC
- UNSPSC
- 32151705
- Tariff Code
- 8536490075
Complementary
- Height
- 100 mm
- [Ith] Conventional Free Air Thermal Current
- 6 A NO relay output circuit
- Mounting Support
- 35 mm symmetrical DIN rail
- Power Consumption In W
- 2.5 W
- Minimum Output Voltage
- 5 V relay output
- Minimum Output Current
- 10 mA relay output
- Time Delay
- 0.5 s || 1 s || 2 s || 3 s || 5 s || 8 s || 12 s || 20 s || 35 s || 60 s
- Associated Fuse Rating
- 6 A gG relay output IEC 60947-1
- Local Signalling
- LED green power power ON || LED red error error || LED yellow state status || LED yellow L12 input line comparison || LED yellow L32 input line comparison
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II IEC 60947-1
- Net Weight
- 0.2 kg
- Standards
- IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard
- [Ui] Rated Insulation Voltage
- 690 V phase to phase 2)IEC 60947-1 || 400 V phase to earth 2)IEC 60947-1
- [Ie] Rated Operational Current
- 5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact
- Power Consumption In Va
- 5.5 VA
- Input Voltage
- 690 V
- Connections - Terminals
- removable spring terminal block solid or flexible 0.2...2.5 mm² || removable spring terminal block flexible with ferrule 0.25...2.5 mm² single conductor || removable spring terminal block solid or flexible 0.2...1.5 mm² twin conductor || removable spring terminal block flexible with ferrule 2 x 0.25...1 mm² without cable end, with bezel || removable spring terminal block flexible with ferrule 2 x 0.5...1.5 mm² with cable end, with bezel
- Width
- 22.5 mm
- Depth
- 120 mm
- Input Detection Threshold
- 50 mV || 65 mV || 85 mV || 110 mV || 140 mV || 180 mV || 230 mV || 300 mV || 400 mV || 500 mV
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1811003EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1811003EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Product Certifications
- TÜV || cULus
- [Us] Rated Supply Voltage
- 48...240 V AC/DC - 10...10 %
- Range Of Product
- Harmony Safety Automation
- Product Or Component Type
- safety module
- Safety Module Name
- XPSUVN
- Number Of Additional Circuits
- 2 solid state outputs
- Output Type
- relay, 1 NO, volt-free
- Safety Module Application
- for zero speed detection
- Safety Reliability Data
- MTTFd > 30 years ISO 13849-1 || Dcavg = 98.9 % ISO 13849-1 || PFHd = 2.44E-9 1/h ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 2.44E-9 1/h IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 2.44E-9 1/h IEC 61508-1 || SFF > 99% IEC 61508-1 || type = B IEC 61508-1
- Function Of Module
- monitoring 3-phase motor || monitoring 3-phase motor with star-delta starting || monitoring 3-phase motor with variable number of poles || monitoring 3-phase motor with variable number of poles and star-delta starting || monitoring dc motor || monitoring servo motor || monitoring 3-phase motor supplied by variable speed drive || monitoring 3-phase motor supplied by servo drive || controlling enegization to open of guard switch type XCSE, XCSLE, XCSLF, XCST
- Safety Level
- can reach PL e/category 3 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ip Degree Of Protection
- IP20 terminals)IEC 60529 || IP40 housing)IEC 60529 || IP54 mounting area)IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Relative Humidity
- 5-95 % non-condensing
