Schneider Electric
XVBL34
1 / 6
Description
Active Mature

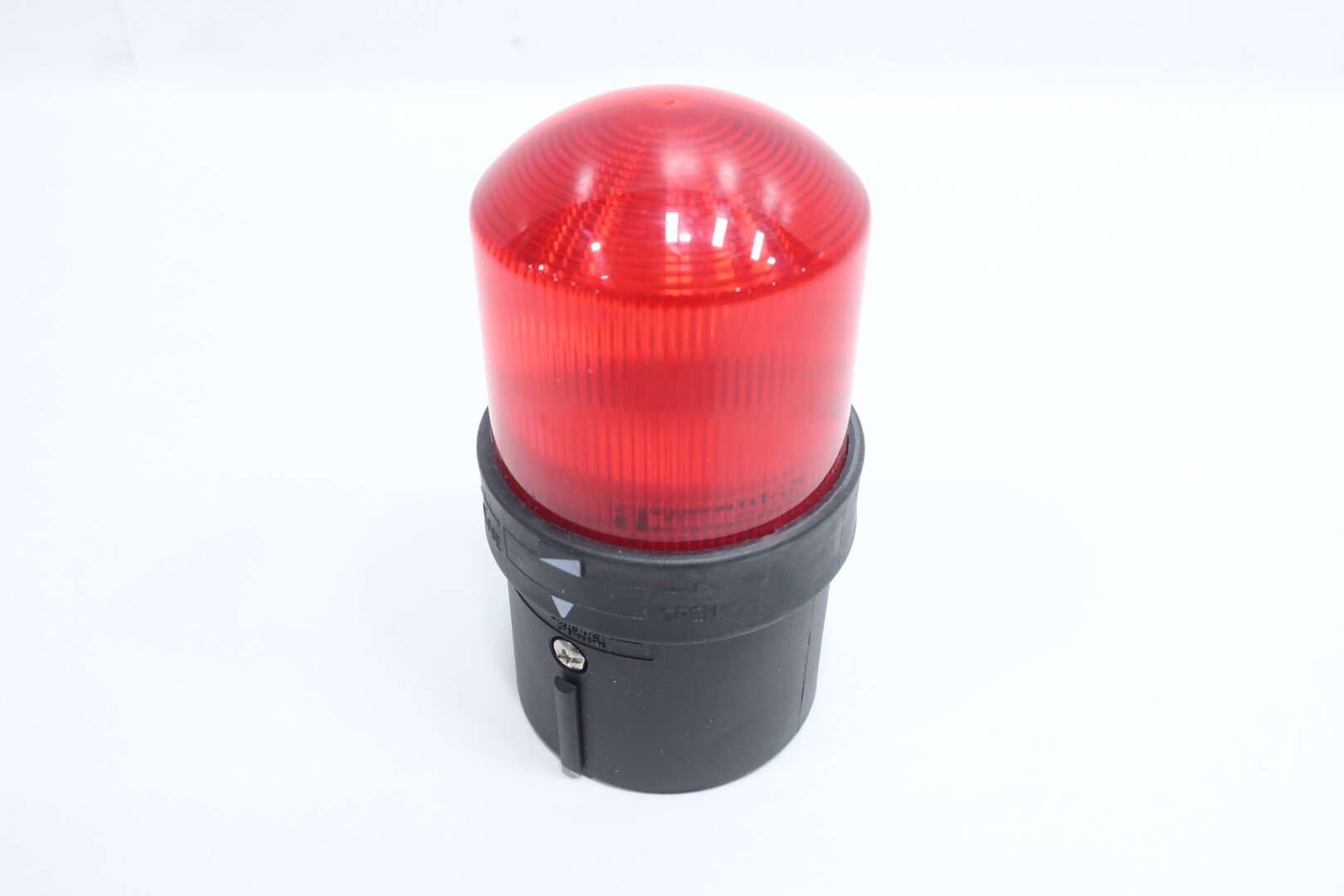

This illuminated complete beacon is designed as lighting accessory for tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.- Country of Origin
- CZ
- Part Number
- XVBL34
- Tariff Code
- 85318070
- EAN
- 3389110844139
- UNSPSC
- 32151503
£44.87
net1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 1 pc.In-StockUpdated at: 21-11-2024
- Estimated Delivery:
- On Request
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Environment
- Product Certifications
- CCC || EAC || CSA C22-2 No 14 || UL 508
- Ambient Air Temperature For Operation
- -25-50 °C LED || -25-70 °C incandescent
- Standards
- IEC 60947-5-1
- Pollution Degree
- 2
- Ip Degree Of Protection
- IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- Type 4X UL indoor)
- Electrical Shock Protection Class
- class I on support tube IEC 61140 || class II on base unit IEC 61140
- Protective Treatment
- TC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP070907EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation
- X
- Circularity Profile
- N/A
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Terminals Description Iso N°1
- (COM-1)PW || (GND)GROUND
- Net Weight
- 0.26 kg
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Cad Overall Height
- 139 mm
- Connections - Terminals
- screw clamp terminals, <= 1 x 1.5 mm² with cable end
- [Ui] Rated Insulation Voltage
- 250 V IEC 60947-1
- Nominal Voltage Limit
- 0.85...1.1 Un IEC 60947-5-1
- Cad Overall Width
- 70 mm
- Cad Overall Depth
- 70 mm
Specifications
- Beacon Or Indicator Bank Unit Type
- base unit direct or tube fixing || illuminated unit
- Range Of Product
- Harmony XVB Universal
- Mounting Diameter
- 70 mm
- Light Source
- bulb not included, red
- Product Or Component Type
- complete beacon
- Component Name
- XVBL
- Maximum Power Dissipation In W
- 7 W
- Signalling Type
- steady
- Bulb Type
- incandescent BA 15d || protected LED
- Material
- glass reinforced polyamide: base unit || polycarbonate: illuminated unit
- [Us] Rated Supply Voltage
- <= 250 V
