Schneider Electric
XVUC25
1 / 3
Description
Active Mature

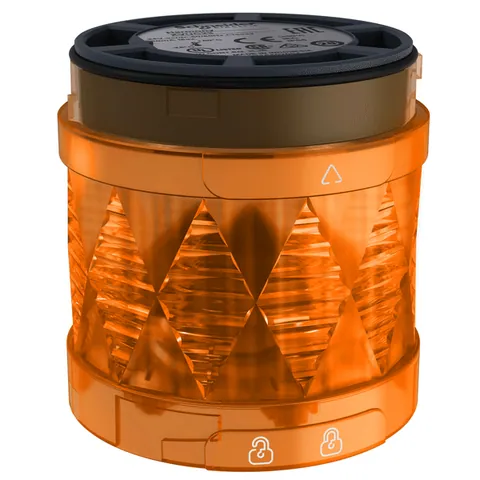

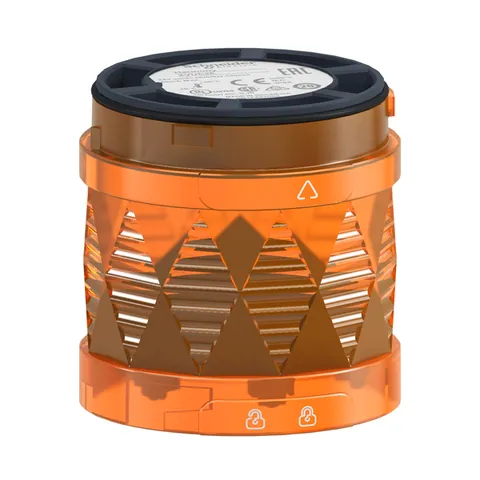

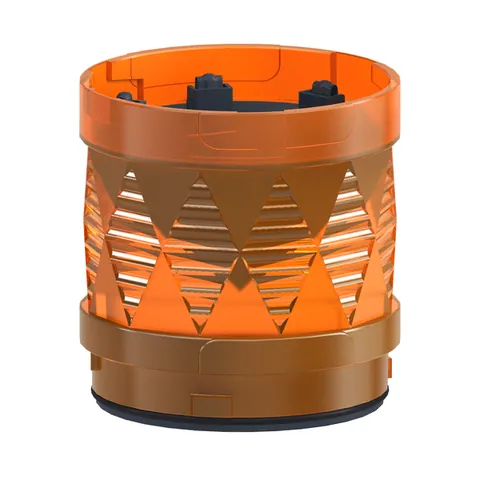

This orange illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.- Country of Origin
- ID
- Part Number
- XVUC25
- Tariff Code
- 85318070
- EAN
- 3606480555831
- UNSPSC
- 32151501
€23.75
netShipping from:
€25.00
1
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 80 pcs.In-StockUpdated at: 22-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- 26-29 November to United Kingdom
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403004EN
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Range Of Product
- Harmony XVU
- Mounting Diameter
- 60 mm
- Light Source
- LED, orange
- Product Or Component Type
- modular tower light
- Component Name
- XVU
- Beacon Or Indicator Bank Unit Type
- LED unit
- Device Application
- packaging machine || machine tools || automotive
Environment
- Product Certifications
- CSA || UL || CE
- Ambient Air Temperature For Operation
- -25-50 °C
- Ip Degree Of Protection
- IP65
- Vibration Resistance
- 2 gn
- Ambient Air Temperature For Storage
- -40-70 °C
Complementary
- [Us] Rated Supply Voltage
- 24 V AC/DC
- Material
- PC (polycarbonate) V-2 UL 94 || PC (polycarbonate) V-0 UL 94
- Current Consumption
- <= 40 mA
- Length
- 50 mm
- Net Weight
- 0.064 kg
- Maximum Power Dissipation In W
- 2 W
- Signalling Type
- steady
- Assembly Style
- customer assembly, up to 5 units || up to 4 units with buzzer
