Schneider Electric
ZB4BW33

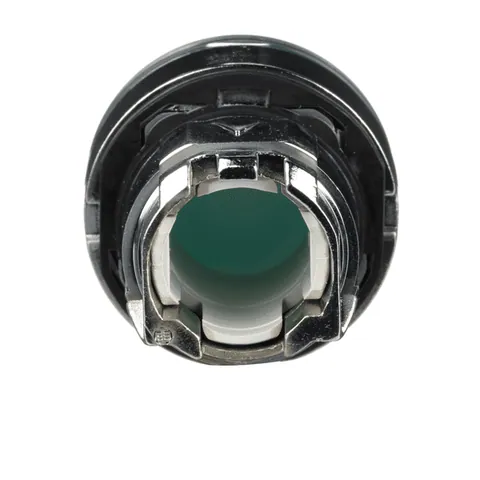

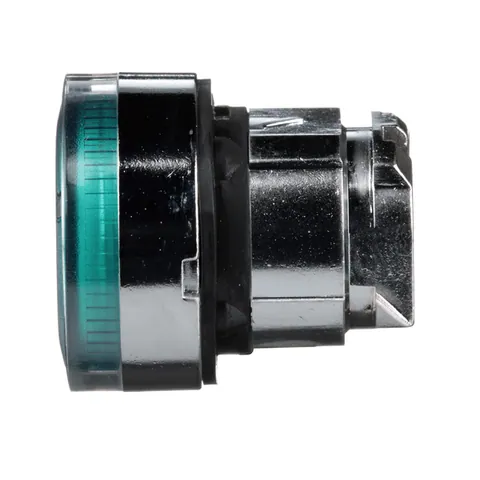

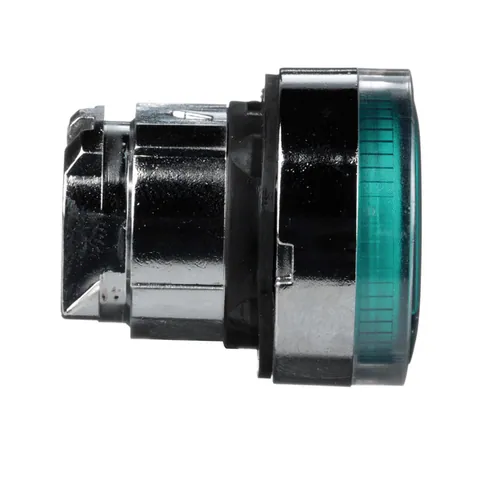

Harmony, 22mm Push Button, illuminated pushbutton head, flush, spring return, green, for BA9s bulb
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€5.22
1
Payment methods:
A total of 1,268 Parts In-Stock from 37 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€3.98
Additional Information
- Part Number
- ZB4BW33
- UNSPSC
- 39122216
- Tariff Code
- 8538908180
- Country of Origin
- CZ
Environment
- Product Certifications
- BV || CSA || UL Listed || GL || LROS (Lloyds register of shipping) || DNV
- Ik Degree Of Protection
- IK06 IEC 62262
- Ambient Air Temperature For Operation
- -40-55 °C
- Standards
- UL 508 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || JIS C8201-1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage
- -40-70 °C
- Overvoltage Category
- class I IEC 60536
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- M7 6 single front mounting BA 9s || M8 6 single and double front mounting BA 9s || M9 2 single front mounting BA 9s and transformer
- Net Weight
- 0.027 kg
- Cad Overall Height
- 29 mm
- Device Presentation
- basic sub-assemblies
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Mechanical Durability
- 10000000 cycles
- Cad Overall Width
- 29 mm
- Cad Overall Depth
- 32 mm
Specifications
- Operator Additional Information
- with plain lens
- Range Of Product
- Harmony XB4
- Mounting Diameter
- 22 mm
- Type Of Operator
- spring return
- Product Or Component Type
- head for illuminated push-button
- Shape Of Signaling Unit Head
- round
- Head Type
- standard
- Sale Per Indivisible Quantity
- 1
- Bezel Material
- chromium plated metal
- Operator Profile
- green flush, unmarked
- Product Compatibility
- BA 9s
- Device Short Name
- ZB4
