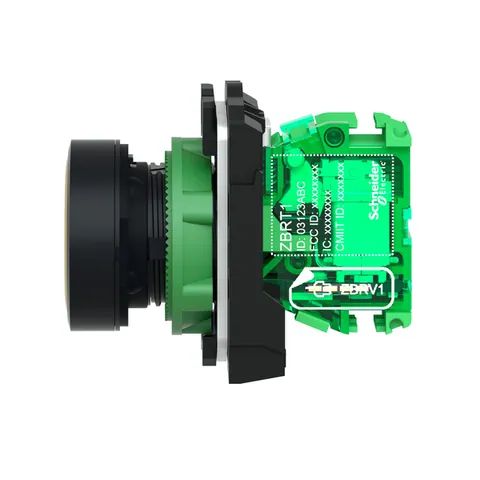

ZB5RTA5

Environment

Product Certifications

BT 2006/95/EC || GOST || C-tick || CSA || UL

Ik Degree Of Protection

IK03 IEC 50102

Ambient Air Temperature For Operation

-40-70 °C

Electromagnetic Compatibility

electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3

Shock Resistance

25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Vibration Resistance

5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6

Ip Degree Of Protection

IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)

Directives

1999/5/EC - R&TTE directive || 2004/108/EC - electromagnetic compatibility

Ambient Air Temperature For Storage

-40-70 °C

Relative Humidity

95-95 % -40-70 °C without condensation

Mechanical Durability

1000000 cycles

Contractual warranty

Warranty

18 months

Offer Sustainability

Rohs Exemption Information

Yes

Mercury Free

Yes

Environmental Disclosure

ENVPEP101106EN

Sustainable Offer Status

Green Premium product

Reach Regulation

Reference contains Substances of Very High Concern above the threshold

California Proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation

X

Circularity Profile

ENVEOLI1103010EN

Eu Rohs Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Mechanical Robustness

free fall resistance 1000 mm EN/IEC 60068-2-32

Operating Force

10 N C/O changing electrical state

Modulation Technique

O-QPSK

Standards

CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508

Embedding Depth

42 mm

Operating Travel

4.3 mm total travel)

Fixing Mode

fixing nut beneath head 2-2.4 N.m

Type Of Operator

spring return push-button with transmitter

Electrical Composition Code

PW1

Acquisition Time

2 ms

Communication Port Protocol

Zigbee green power 2.4 GHz IEEE 802.15.4

Shape Of Signaling Unit Head

round

Response Time

< 2 ms

Antenna Gain

0 dBi

Net Weight

0.045 kg

Cad Overall Height

41.5 mm

Maximum Sensing Distance

100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Max Power Consumption In W

1 mW

Number Of Channels

16

Operator Profile

yellow flush

Station Name

XALD 1...5 cut-outs || XALK 2...5 cut-outs

Radio Agreement

ANATEL || ARIB T66 || FCC || ICASA || RSS

Cad Overall Width

30 mm

Emission Power

3 mW

Cad Overall Depth

43 mm

Bandwidth

5-5 MHz

Specifications

Antenna Type

omnidirectional

Range Of Product

Harmony XB5

Transmission Frequency

2405 MHz

Mounting Diameter

22 mm

Product Or Component Type

wireless and batteryless transmitter

Fixing Collar Material

plastic

Level Or Class

5M00G7W

Bezel Material

dark grey plastic

Device Short Name

XB5R
