Schneider Electric
ZCKJ2H29

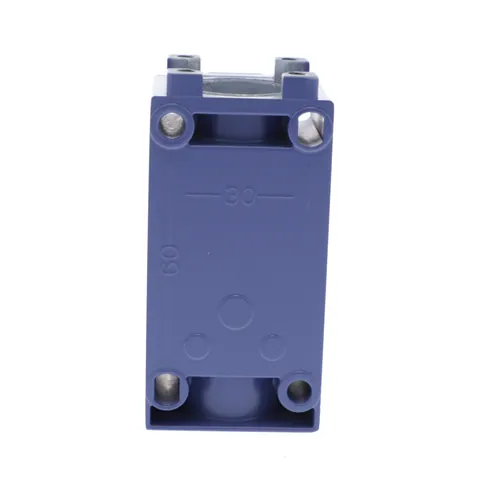

Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2C/O, snap action, M20
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€65.53
1
Payment methods:
A total of 18 Parts In-Stock from 13 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:1 - 2 business days
Best price:
Send request for price
Additional Information
- Part Number
- ZCKJ2H29
- UNSPSC
- 39122213
- Tariff Code
- 8536509055
- Country of Origin
- FR
Specifications
- Series Name
- standard format
- Contacts Type And Composition
- 2 C/O
- Body Type
- fixed
- Range Of Product
- Telemecanique Limit switches XC Standard
- Contact Operation
- snap action
- Contacts Material
- silver plated contacts
- Associated Head
- ZCKE63 || ZCKE619 || ZCKE62 || ZCKE08 || ZCKE21 || ZCKE06 || ZCKE05 || ZCKE65 || ZCKE67 || ZCKE66 || ZCKE629 || ZCKE61 || ZCKE64 || ZCKE23
- Body Material
- metal
- Cable Entry
- 1 entry tapped for M20 x 1.5 cable gland
- Product Or Component Type
- limit switch body
- Product Compatibility
- XCKJ
- Number Of Steps
- 1 1 position
- Device Short Name
- ZCKJ
- Number Of Poles
- 2
Contractual warranty
- Warranty
- 18 months
Complementary
- Height
- 102-102 mm
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO || (11-12)NC || (23-24)NO
- Short-Circuit Protection
- 10 A cartridge fuse gG
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- Positive Opening
- without
- Minimum Actuation Speed
- 0.01 m/min
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Width
- 40 mm
- Depth
- 60 mm
- Local Display
- without
- Net Weight
- 0.455 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- Maximum Resistance Across Terminals
- 0.25 mOhm IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Characteristic
- low temperature
- Ambient Air Temperature For Operation
- -40-70 °C low temperature
- Ik Degree Of Protection
- IK07
- Ip Degree Of Protection
- IP66
