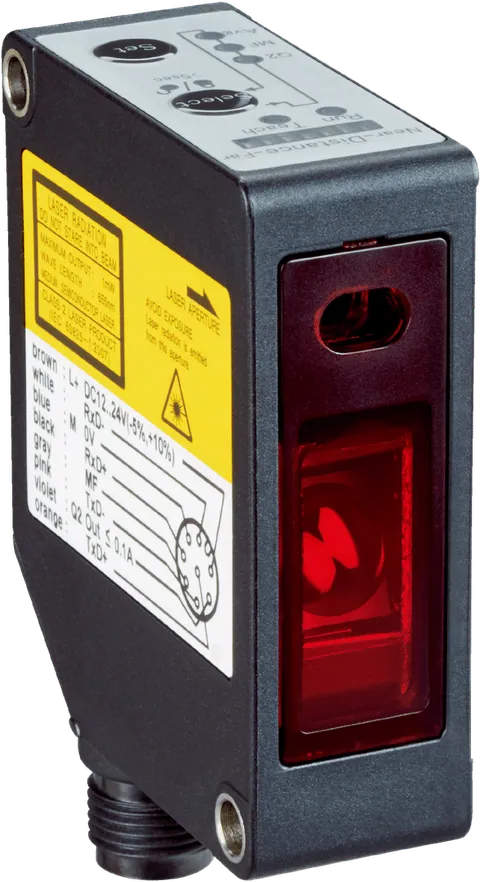

Sick OD2-P250W150I0

The Sick OD Value OD2-P250W150I0 Laser Distance Sensor offers exceptional accuracy and reliability for displacement measurement applications. Utilizing a visible red laser, this sensor provides a measuring range of 100 mm to 400 mm, making it ideal for a variety of industrial tasks. With a repeatability of 75 µm and linearity of ± 750 µm, it ensures precise measurements even in challenging conditions.

Key features include automatic sensitivity adjustment, mean-value setting (1 to 64x), and multiple switching modes such as distance to object (DtO) and window (Wnd). The sensor is equipped with both analog and digital outputs, which can be taught in and inverted as needed. The multifunctional input allows for laser-off, external teach-in, or trigger functions, enhancing its versatility.

Designed to withstand harsh environments, the OD2-P250W150I0 boasts an IP67 enclosure rating and operates within a temperature range of -10°C to +40°C. It features a robust plastic (PBT) housing and a plastic (PMMA) window, ensuring durability and longevity. The sensor is compliant with IEC 60825-1:2014 and EN 60825-1:2014 standards, providing safe and reliable operation.

Applications for this sensor include precision measurement in manufacturing, quality control, and automation systems where accurate distance measurement is critical.
