Siemens
3RK1301-1AB00-0AA2

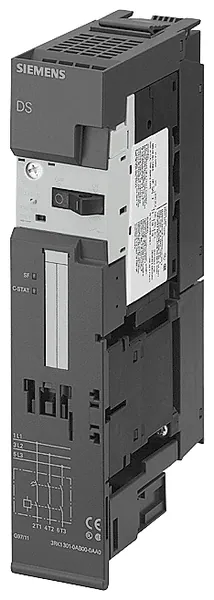

STARTER DS1-X ET200S 0.55KW 1.1-1.6A
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
$1,057.32
1
Payment methods:
A total of 93 Parts In-Stock from 24 Distributors
Product Conditions:
Additional Information
- Part Number
- 3RK1301-1AB00-0AA2
- UPC
- 662643248753
- Tariff Code
- 8536504000
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Motor starter/Motor starter combination
- Class Code : EC001037
- Version : 7
Specifications
- Width
- 45 mm
- Depth
- 120 mm
- Height
- 265 mm
- Release class
- CLASS 10
- Voltage type for actuating
- DC
- Degree of protection (IP)
- IP20
- With short-circuit release
- true
- Kind of motor starter
- Direct starter
- Overload release current setting
- 1.1 A
- Rated control supply voltage Us at DC
- 20.4 V
- Rated operation current at AC-3, 400 V
- 1.6 A
- Rated operation power at AC-3, 400 V
- 0.55 kW
- Coordination class according to IEC 60947-4-3
- Class 2
- Type of electrical connection of main circuit
- Screw connection
- Country of Origin
- DE
