Siemens

3RK1325-6LS71-3AA5

1 / 1
thumbnail

Descripción

ActivoCumple con RoHS

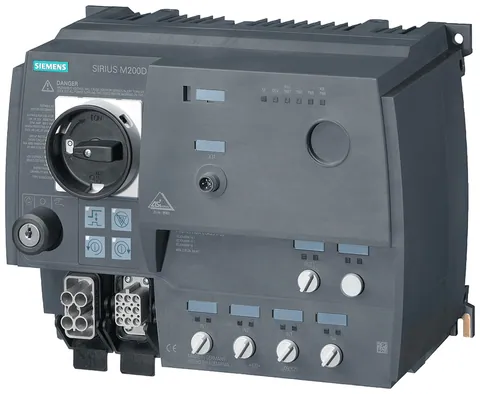

SIRIUS motor starter M200D AS-i, Communication: AS-Interface Reversing starter standard Electronic switching AC-3, 5.5 kW / 400 V 1.5 A...12.00 A, Electronic overload protection Thermistor:, THERMOCLICK / PTC with brake contact, 180 V DC 4 DI / 1 DO, AS-i Han Q4/2 - Han Q8/0 with manual, on-site operation and key-operated switch
Country of Origin
DE
Part Number
3RK1325-6LS71-3AA5
Tariff Code
85371098
EAN
4011209823914
UPC
662643544435
Métodos de pago:
Mejor oferta de:
DEProveedor de confianza de Automa.Net
Disponibilidad:
1 pieza
En stock
Actualizado en: 07-11-2024
Garantía:
12 meses
Entrega Estimada:
Bajo pedido
Condición:
Nuevos excedentes
Nuevos excedentes - Un artículo nuevo, sin usar, sin daños y sin garantía del fabricante. El artículo puede venir sin embalaje original o en embalaje de reemplazo. Si se proporciona, es posible que la caja haya sido abierta.
Proceso de Pago Seguro
Políticas de Devolución y Reembolso
Políticas de Envío
Políticas de Garantía

Specifications

Depth
159 mm
Width
294 mm
Height
215 mm
With fuse
true
Country of Origin
DE
Release class
Other
External reset possible
true
Number of command positions
4
Number of indicator lights
12
Voltage type for actuating
DC
Degree of protection (IP)
IP65
Degree of protection (NEMA)
12
Rated operation current Ie
12 A
With short-circuit release
true
Supporting protocol for ASI
true
Overload release current setting
1.5 A
Kind of motor starter
Reversing starter
Rated power, 460 V, 60 Hz, 3-phase
5.5 kW
Rated operation current at AC-3, 400 V
12 A
Rated operation power at AC-3, 400 V
5.5 kW
Rated control supply voltage Us at DC
20.4 V
Temperature compensated overload protection
true
Rated operation power at AC-3, 230 V, 3-phase
3 kW
Type of electrical connection of main circuit
Other
Ambient temperature, upper operating limit
40 °C
Coordination class according to IEC 60947-4-3
Class 1
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated conditional short-circuit current, type 1, 480 Y/277 V
20000 A
Type of electrical connection for auxiliary- and control current circuit
Other
