Siemens 3RS2040-1GD50
SIMIREL Temperature Monitoring Relay PT100, KTY83/84, NTC
1 / 1

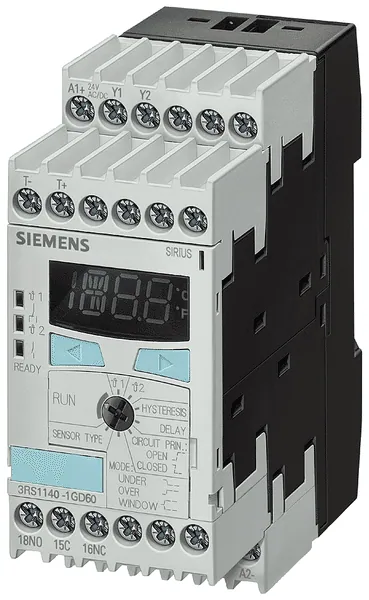

Manufacturer catalogue image
Product Description
RoHS CompliantLifecycle Status:
The SIMIREL Temperature Monitoring Relay is a versatile device designed for monitoring temperature ranges from -58°F to 932°F. It supports three sensor types: PT100/1000, KTY83/84, and NTC. The relay offers two threshold values that can be digitally adjusted, providing a high degree of flexibility in monitoring temperature conditions.
The device operates on a control voltage of 24V AC/DC and features screw terminals for easy installation. It measures the temperature using PT100/1000 sensors and provides an output of 2 x 1 CO + 1 NO, with a width of 45 mm.
It's important to note that this product is no longer in production. The recommended successor is the 3RS2600-1BA30.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — Germany, member since 2024
- Availability:
- 3 pcs.In-StockUpdated at: 11-09-2026
- Warranty:
- 24 months
- Condition:
- Refurbished
Refurbished - A refurbished item inspected, cleaned, and repaired to full working order by either the manufacturer or a certified technician. The item is in excellent condition and fully operational.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Siemens
- With detachable clamps
- External reset possible
- Number of measuring circuits
- 1
- Error registration possible
- Voltage type for actuating
- AC/DC
- Rated control supply voltage Us at DC
- 24 V
