Siemens 3RT1065-6AF36-3PA0
CONTACTOR S10 265A 110-127VUC 2NO/2NC
1 / 2

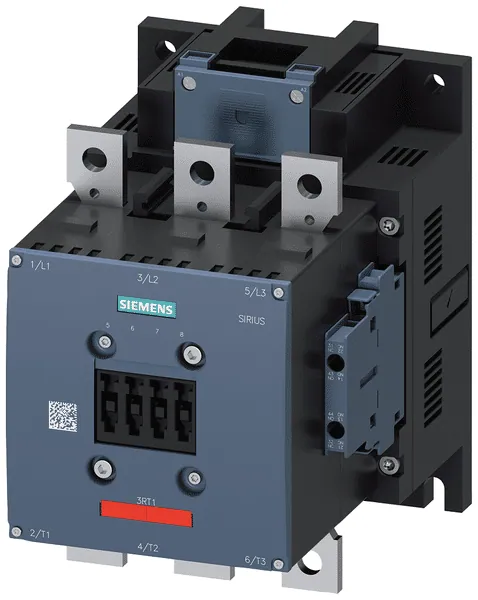

Manufacturer catalogue image
Product Description
RoHS CompliantLifecycle Status:
This contactor operates effectively at a rated power of 132 kW for AC-3 applications at 400 V, supporting both AC and DC operation with control voltages ranging from 110 to 127 V. The device features two normally open (NO) and two normally closed (NC) auxiliary contacts, enabling versatile control options. The contactor is designed with a frame size of S10 and utilizes conventional screw terminals for connection.
In terms of specifications, it has a rated operational current of 265 A, making it suitable for robust industrial applications. The contactor includes three main contacts and is optimized for series installation. It offers a power loss of 18 W per pole under current load and a static power loss of 7.4 W. Notably, it is not suitable for mounting onto standard rails, indicating a specific installation requirement.
With a maximum rated AC voltage for controls of 127 V at both 50 and 60 Hz, this unit is designed to meet various operational demands. The auxiliary switch blocks are designed to be captive and can be mounted laterally on both left and right sides, adhering to DIN 50012 standards.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees- Availability:
- 1 pc.On RequestUpdated at: 22-08-2026
- Condition:
- New Surplus
New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Siemens
- Connection type
- Connecting rail
- Suitable for series installation
- Max. rated DC voltage for controls
- 127 volt
- Number of making contacts and main contacts
- 3
- Min. rated control voltage Us with DC
- 110 volt
- Rated operating power (AC-4, 400 V)
- 132 kilowatt
