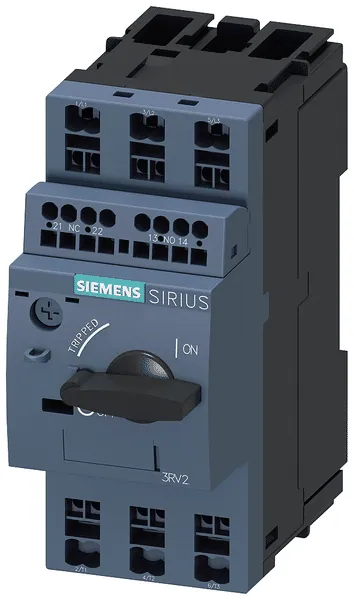

Siemens 3RV2011-0KA25

The S00 circuit breaker serves a critical role in motor protection, operating within a class 10 rating. It offers an A-release setting range from 0.9 A to 1.25 A and is equipped with a N-release capability of 16 A. This unit utilizes a spring-type terminal connection, facilitating ease of installation and maintenance.

Notably, the breaker includes a transverse auxiliary switch comprising 1 normally open (NO) and 1 normally closed (NC) contact, enhancing its functionality in circuit management. The device operates effectively under a maximum rated voltage of 690 V, with a rated permanent current of 1 A. It is sensitive to phase failure and employs a magnetic release system, ensuring reliable operation.

Designed for robust performance, the circuit breaker has a rated short-circuit breaking capacity of 100,000 A at 400 V, accommodating demanding industrial applications. It is important to note that this model does not support mounting onto standard rails and does not feature an integrated undervoltage tripper. The unit is classified under product type 3RV2 and has an IP20 protection type.
