Siemens

3RV2011-1FA20

1 / 2
thumbnail
thumbnail

Description

ActiveRoHS Compliant

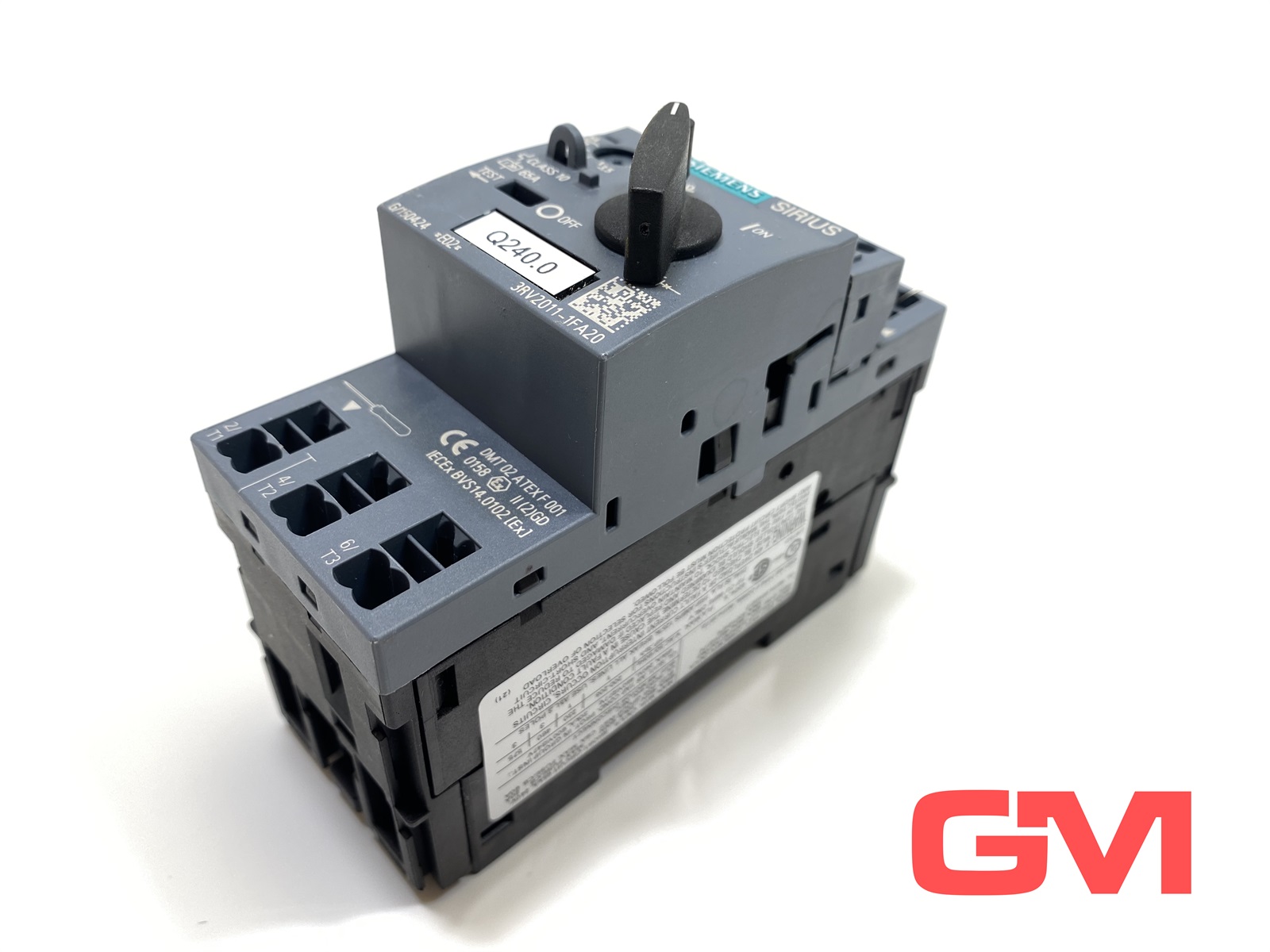

Circuit-breaker sz s00, for motor protection, class 10, a-release 3.5...5a, n-release 65a, spring-l. connection, standard sw. capacity
Country of Origin
DE
Part Number
3RV2011-1FA20
Tariff Code
85362090
EAN
4011209724303
UPC
662643923995
ETIM
Group Code : EG000017
Group Description : Low-voltage Industrial Components
Class Description : Motor protection circuit-breaker
Class Code : EC000074
Version : 7
€33.44
net
€37.16
Shipping from:
€25.00
1
Payment methods:
Best offer from:
CZTrusted Automa.Net Supplier
Availability:
1 pc.
In-Stock
Updated at: 07-11-2024
Warranty:
24 months
Estimated Delivery:
08-11 November to United Kingdom
Condition:
New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies

Specifications

Pole number
3
Manner of using
Toggle
Protection type IP
IP20
Release system
magnetic
Sensitive to phase failure
true
Description of product type
3RV2
Rated permanent current Iu
5 ampere
Max. rated operating voltage
690 volt
Min. rated operating voltage
690 volt
Connection type
Spring pulley connection
Number of auxiliary contacts as opener
0
Number of auxiliary contacts as shutter
0
Country of Origin
DE
Rated operating power with AC-3, 230 V
1 kilowatt
Rated operating power with AC-3, 400 V
2 kilowatt
Power loss per pole, current-dependent [PlIp]
2.4 watt
Greatest value of overload release adjustment range
5 ampere
Rated current [In] for the power loss specification
5 ampere
Lowest value of setting range for overload tripper
3.5 ampere
Rated service short-circuit breaking capacity Ics at 400 V, 50 Hz
100000 ampere
