Siemens

3RW3018-1BB14

1 / 2
thumbnail
thumbnail

Description

ActiveRoHS Compliant

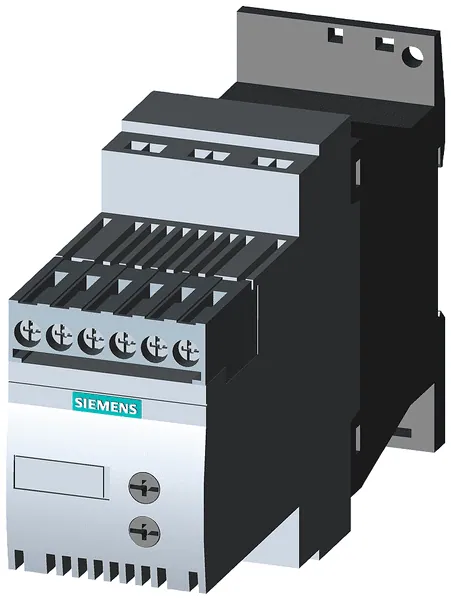

SIRIUS soft starter s00 17.6 a, 7.5 KW/400 V, 40 ¦c 200-480 V AC, 110-230 V AC/DC screw terminals
Country of Origin
CZ
Part Number
3RW3018-1BB14
Tariff Code
85371098
EAN
4011209719668
UPC
754554958347
ETIM
Group Code : EG000017
Group Description : Low-voltage Industrial Components
Class Description : Soft starter
Class Code : EC000640
Version : 7
€129.00
net
Shipping from:
€21.00
1
Payment methods:
Best offer from:
PLTrusted Automa.Net Supplier
Availability:
1 pc.
In-Stock
Updated at: 21-11-2024
Warranty:
12 months
Estimated Delivery:
25 November to United Kingdom
Condition:
New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
A total of 2 Parts In-Stock from 2 Distributors
Delivery from:
PL
PL
CZ
CZ
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies

Available Offers (1)

3RW3018-1BB14 product image
Siemens

3RW3018-1BB14

Condition:
New Factory Sealed
Available:
1 pc.
In-Stock
Updated at: 21-11-2024
Offer from:
CZTrusted Automa.Net Supplier
Estimated Delivery:
25-26 November to United Kingdom
Warranty:
24 months
1
€260.00
€234.00
net
Shipping from:
€25.00

Specifications

Release class
Other
Internal bypass
true
Function
Single direction
Degree of protection (IP)
IP20
Rated operating voltage Ue
200 V
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC
110 V
Country of Origin
CZ
Rated control supply voltage Us at AC 50HZ
110 V
Rated control supply voltage Us at AC 60HZ
110 V
Rated operation current Ie at 40 °C Tu
17.6 A
Rated power three-phase motor, inline, at 230 V
4 kW
Rated power three-phase motor, inline, at 400 V
7.5 kW
Rated surrounding temperature without derating
40 °C
