Siemens 3SE5234-1CC05-1AF3

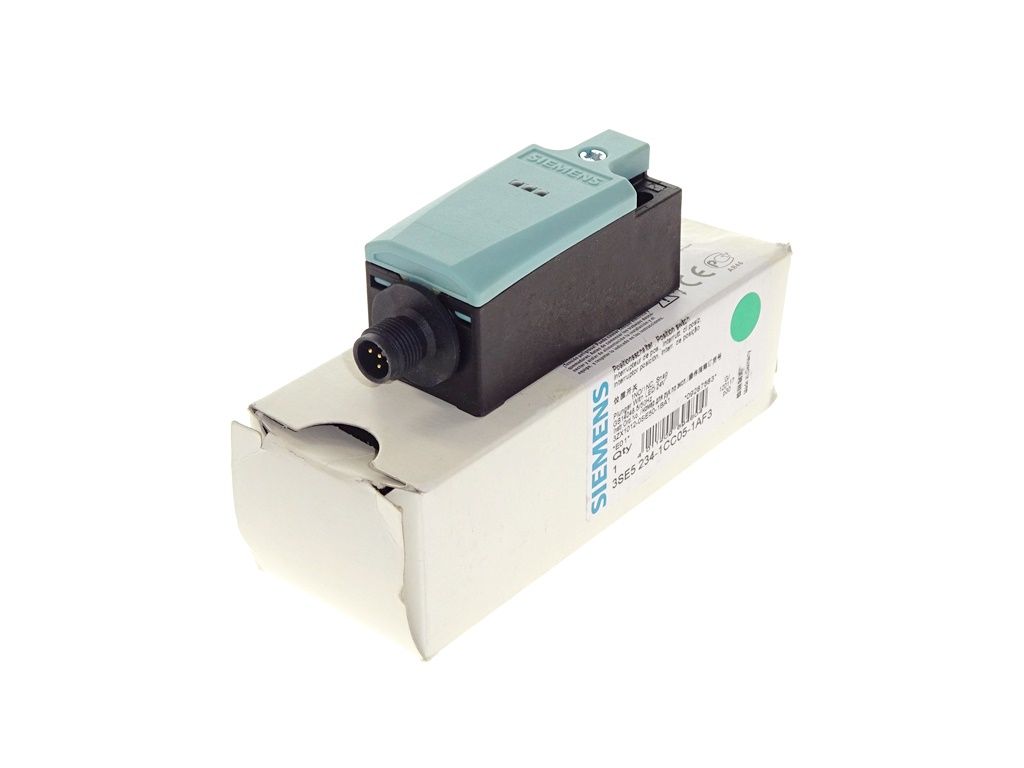

The position switch features a plastic enclosure with dimensions of 31 mm in width and 33 mm in height, adhering to EN 50047. It is equipped with 1 normally open (NO) and 1 normally closed (NC) quick action contact, designed for reliable operation. This device utilizes a 5-pole M12 plug-in connection and includes dual status indication LEDs, which emit yellow and green light at 24 V DC. The pin assignment for the connector is as follows: Pin 1 = 21, Pin 2 = 22, Pin 3 = 13 (green LED), Pin 4 = 14 (yellow LED), and Pin 5 is used for ground.

Constructed from plastic, this switch complies with IP65 and NEMA 12 protection standards, ensuring resistance to dust and moisture. It has a forced opening mechanism and is suitable for safety functions, featuring a single safety auxiliary contact. The rated operational current for the switch is 3 A at DC-13, 24 V. The ambient temperature range for operation is -25 °C. The alignment of the control element is a straight roller cam, providing precise actuation.
